2.

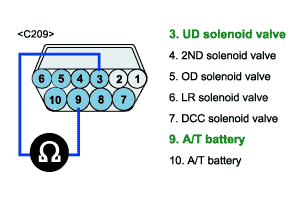

Measure resistance between terminal 3 and terminal 9 of the ATM SOLENOID VALVE harness connector
1)
Specification: Approximately 3.0 ± 0.5 Ω (20℃)
Turn ignition switch OFF and disconnect ATM SOLENOID VALVE connector
Measure resistance between terminal 3 and terminal 9 of the ATM SOLENOID VALVE harness connector
Specification: Approximately 3.0 ± 0.5 Ω (20℃)
Is resistance within specification?
YES
Go to next step as below
NO
Replace UD SOLENOID VALVE and go to "Verification of Vehicle Repair" procedure
Turn ignition switch to ON and connect ATM SOLENOID VALVE connector
After connecting a scantool, select a Actuator test
Use UD Solenoid Actuator Testing Function in Scantool.
For using Actuator Testing Function, verify that you can hear oprerating tone of UD Solenoid.
Can you hear oprerating tone of Solenoid ?
YES
Go to "Verification of Vehicle Repair" procedure
NO
Replace PCM and Go to "Verificaiton Vehicle Repair" procedure
ACTUATOR TEST CONDITION
In below conditions are all satisfied , scantool actuate the correponding solenoid valve with 50% duty percentage and not other solenoid valve does not actuate.
IG SWITCH ON
Do not any other actuator test
INHIBITOR SWICH input normal
P RANGE
Vehicle Speed 0km/h
Throttle position＜ 1V
IDLE SWITCH ON
ENGINE RPM 0
For doing not FAIL
