5.
Compare with under the table.
IG KEY : ON , Engine : ON

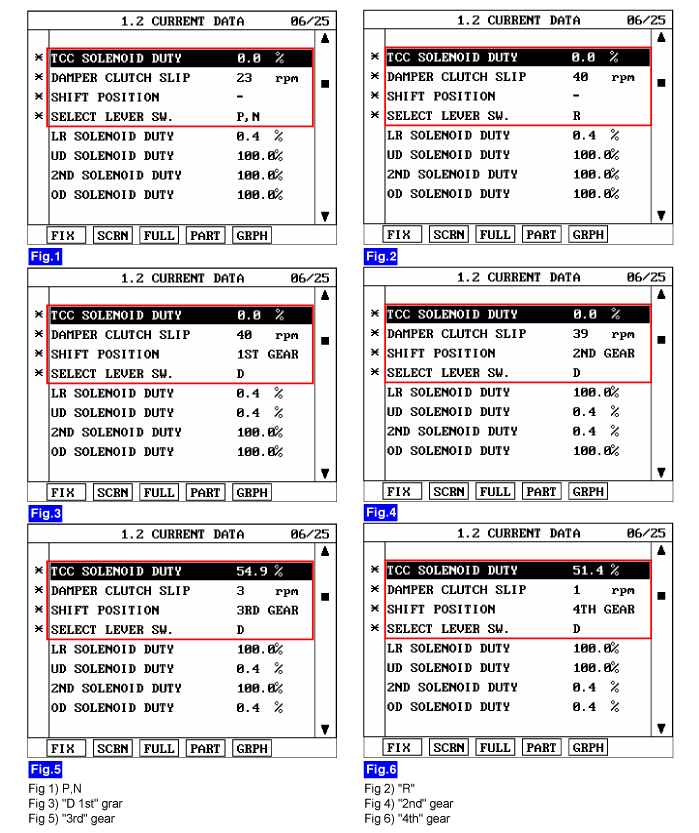

Connect the Scantool,select the service data.
Select ENGINE SPEED, INPUT SPEED SENSOR, DAMPER CLUTCH SOL. DUTY ,DAMPER CLUTCH SLIP.
Drive vehicle and measure data
Compare with under the table.
Is TCC SOLENOID DUTY display near the specified value?
YES
Go to "Terminal and Connector Inspection" of the W/Harness Inspection procedure
NO
Go to "Power circuit inspection" of the "W/Harness Inspection" procedure
