3.

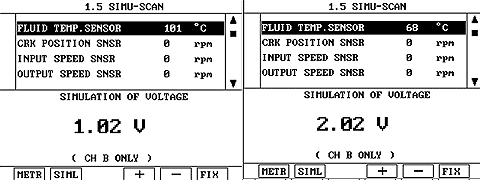

Monitor the "ATF SENSOR" parameter on the scantool data list.
1)
Test Condition : Engine "ON"
2)
Specification : Gradually rises to 70 ~ 90 ℃
After a repair, it may be necessary to check that fault is properly rectified.
After connecting a Scantool and Clear DTC.
By driving the vehicle, confirm the completion of diagnosis to troubled part’s repair
Monitor the "ATF SENSOR" parameter on the scantool data list.
Test Condition : Engine "ON"
Specification : Gradually rises to 70 ~ 90 ℃
Monitoring for (pending) DTC. Is DTC P0712 set?
YES
Go to the applicable troubleshooting procedure.
NO
System OK
