Monitor Scantool Data
1.

Ignition "OFF"

2.

Connect Scantool and Engine "ON"

3.

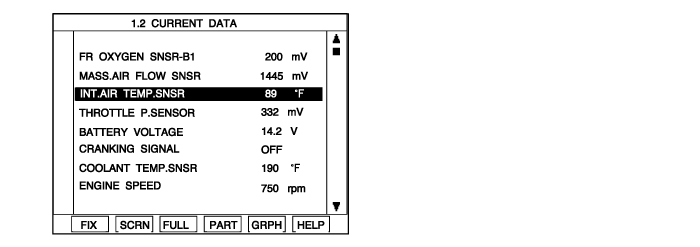

Monitor Intake Air Temperature Sensor parameter on Current data .

Specification : (Error range is 2 ~ 3%)

Temperature(℃/℉)

-40/40

-30/-22

-20/-4

0/32

20/68

80/176

100/212

110/230

120/248

Resistance(kΩ)

45.3

25.6

15.1

5.8

2.5

0.33

0.19

0.16

0.13

Voltage(V)

4.48

4.34

4.12

3.46

2.57

0.64

0.39

0.34

0.27

4.

Is Current data displayed correctly ?

YES

▶ Fault is intermittent caused by poor contact in the sensor’s and/or PCM’s connector or was repaired and PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection,bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "Verification of Vehicle Repair" procedure.

NO

▶ Go to "W/Harness Inspection" procedure.
