Monitor Scantool Data
1.

Engine "ON"

2.

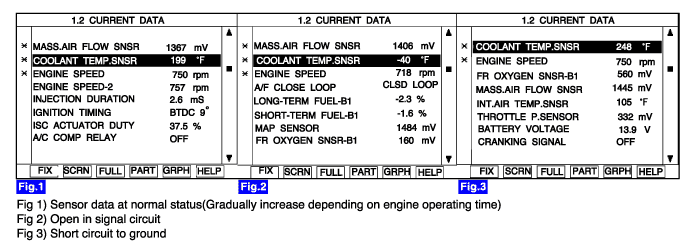

Monitor Engine Coolant Temperature Sensor parameter on Current data.

3.

After the engine has been starting, Check that ECT rises steadly to about 90℃(194℉) and ECT stabilizes when the thermostat opens.

Specification : ECT rises steadly to about 90℃(194℉) and ECT stabilizes when the thermostat opens. (Error range is 2~3%)

Temperature(℃/℉)

-30/-22

-20/-4

0/32

20/68

40/104

60/140

80/176

100/212

110/230

Resistance(kΩ)

26.74

15.48

5.79

2.45

1.148

0.587

0.322

0.188

0.147

Voltage(V)

4.39

4.17

3.48

2.56

1.68

1.04

0.63

0.39

0.31

4.

Is the measured ECTS parameter displayed within specifications ?

YES

▶ Fault is intermittent caused by poor contact in the sensor’s and/or PCM’s connector or was repaired and PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection,bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "Verification of Vehicle Repair" procedure.

NO

▶ Go to "W/Harness Inspection" procedure.
