1.
Check Injector
(1)
Ignition "OFF"
(2)
Disconnect Injector connector.
(3)

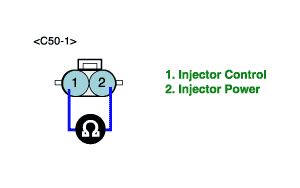

Measure resistance between terminal 1 and 2 of injector connector.
Specification : 13~16Ω at 20℃(68℉)
(4)
Is the measured resistance within specifications?
YES
▶ Substitute with a known - good PCM and check for proper operation.
If the problem is corrected, replace PCM and go to "Verification of Vehicle Repair" procedure.
NO
▶ Substitute with a known - good injector and check for proper operation.
If the problem is corrected, replace injector and go to "Verification of Vehicle Repair" procedure.
