1.
Check EGR S/V
(1)
Ignition "OFF"
(2)

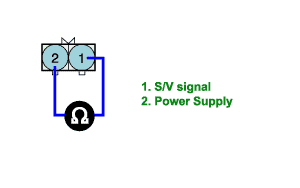

Measure resistance between terminal 1 and 2 of the EGR S/V connector.
1)
Specification : Approx. 35 ~ 45Ω(20℃)
(3)

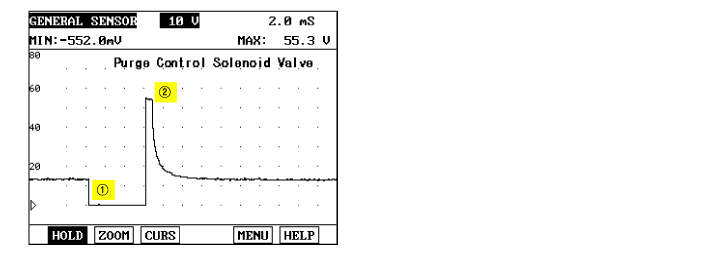

Check that the ground voltage is less than approx. 0.3V(①) and the surge voltage(②) is between 40 V and 60 V in the EGR’s signal waveform.
(4)
Is the EGR valve working properly ?
YES
▶ Substitute with a known - good PCM and check for proper operation.
▶ If the problem is corrected, replace PCM and go to "Verification of Vehicle Repair" procedure.
NO
▶ Substitute with a known - good EGR Valve and check for proper operation.
▶ If the problem is corrected, replace EGR Valve and go to "Verification of Vehicle Repair"procedure.
