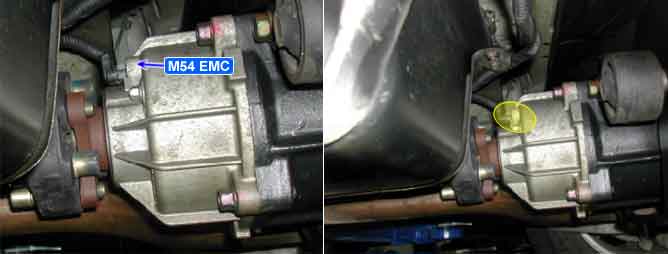

Component Location
General Description

EMC(Electric Magnetic Clutch) distributes proper torque to front wheel by controling amount of current inside EMC coil. That time power pressing the multi plate clutch by apply cam is changed by a rate of EMC duty. after multi plate clutch start slip the force for acceletion at front/rear wheel is controlled at a range of 100:0 ~ 50 : 50.

DTC Description

This DTC code is related to the EMC and is set If control harness has an open or short to battery source. If failure is detected TCCU prohibits the ITM control and vehicle is controlled with 2WD by intercepting EMC current.

DTC Detecting Condition

Item

Detecting Condition

Possible Cause

DTC Strategy

● Short/ Open to Battery

● Power supply malfunction.

● EMC,TCCU connector looseness and poor terminal to wire connection.

● EMC circuit open or short to battery.

● Faulty EMC motor .

● Faulty TCCU .

Enable Conditions

● Ignition cycle required

Threshold Value

● 25 occurances

Diagnostic Time

● 0.8 sec

MIL on condition

● 0.5 Sec.

Fail Safe

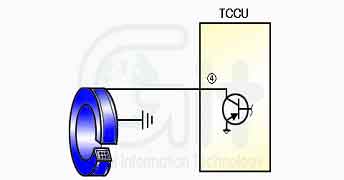

Schematic Diagram

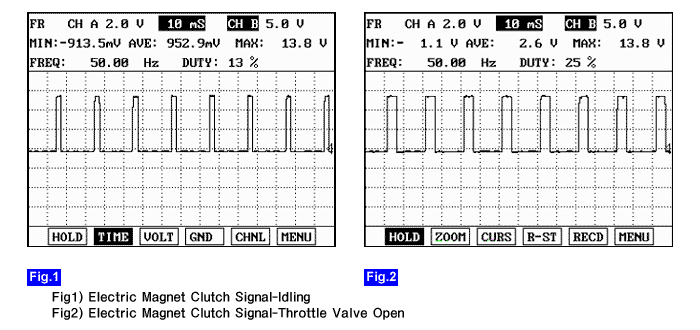

Signal Waveform
