3.

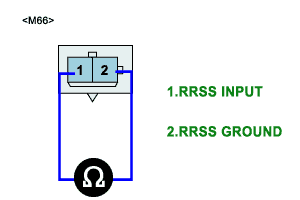

Measure resistance between terminal 1 & 2 of FLSS harness connector M66 .
1)
Specification : Approx. 1.1±0.05㏀.
caution
The above value is just for reference. The actual value may differ from it according to various engine condition.
Ignition OFF
Speed Sensor,TCCU connector : Disconnect.
Measure resistance between terminal 1 & 2 of FLSS harness connector M66 .
Specification : Approx. 1.1±0.05㏀.
The above value is just for reference. The actual value may differ from it according to various engine condition.
Is resistance display near the specified value?
YES
Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure.
NO
Check "Speed Sensor" for contamination, deterioration, or damage.
Substitute with a known-good "Speed Sensor" and check for proper operation. If the problem is corrected, replace "Speed Sensor" and then go to "Verification of Vehicle Repair" procedure.
