3.
Measure continuity(resistance) between each teminals of the sensor
1)
Specification : Approx. 0 Ω
Ignition "OFF" & Engine "OFF".
Remove "TRANSAXLE RANGE SWITCH"

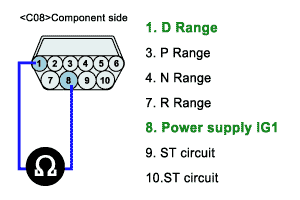

Measure continuity(resistance) between each teminals of the sensor
Specification : Approx. 0 Ω
Is resistance within specifications ?
YES
Substitute with a known-good PCM/TCM and check for proper operation. If the problem is corrected, replace PCM/TCM and then go to "Verification of Vehicle Repair" procedure.
NO
Replace "TRANSAXLE RANGE SWITCH" and Go to "Verification of Vehicle Repair" procedure
