Visually/physically inspect the following items:

Measure the resistance of the spark plug cable

Specification : 5.6kΩ/m ± 20% at 20℃(68℉)

Is the measured resistance within specifications ?

YES

▶ Go to "Check Spark Plug" as below.

NO

▶ Repair or replace as necessary and go to "Verification of Vehicle Repair" procedure.

Ignition "OFF"

Disconnect Spark Plug Cable and remove Spark Plug.

Measure Spark Plug Gap using a wire gap gauge.

Specification : 1.0 ~1.1mm (0.039 ~ 0.043inch)

Is the measured resistance within specifications ?

YES

▶ Go to "Check Ignition Coil" as below.

NO

▶ Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure.

Ignition "OFF"

Disconnect Ignition Coil connector.

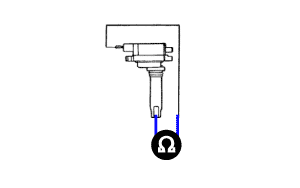

Measure the secondary coil resistance between the high-voltage terminals of the ignition coil.

Specification : Approx. 20kΩ ± 15% (20℃(68℉))

Is the measured resistance within specifications ?

YES

▶ Substitute with a known - good PCM and check for proper operation.

▶ If the problem is corrected, replace PCM and go to "Verification of Vehicle Repair" procedure.

NO

▶ Substitute with a known - good Ignition Coil and check for proper operation.

▶ If the problem is corrected, replace Ignition Coil and go to "Verification of Vehicle Repair"procedure.
