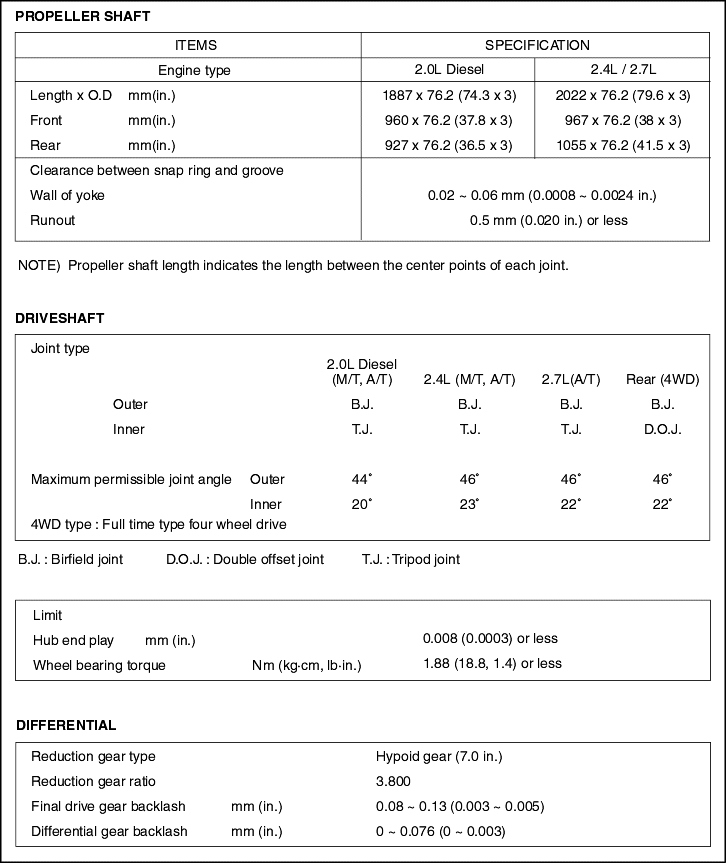

Items | Nm | Kg·cm | Ib·ft |
Propeller shaft | |||
Yoke flange mounting nut | 50 ~ 60 | 500 ~ 600 | 37 ~ 44 |
Center bearing mounting nut | 40 ~ 50 | 400 ~ 500 | 29 ~ 37 |
Center bearing to flange mounting | 40 ~ 50 | 400 ~ 500 | 29 ~ 37 |
Self locking nut | 100 ~ 120 | 1000 ~ 1200 | 74 ~ 89 |
VL joint mounting nut | 30 ~ 40 | 300 ~ 400 | 22 ~ 29 |
Pinion mounting nut | 230 ~ 250 | 2300 ~ 2500 | 168 ~ 183 |
Rubber coupling mounting nut | 100 ~ 120 | 1000 ~ 1200 | 74 ~ 89 |
Castle nut | 200 ~ 260 | 2000 ~ 2600 | 148 ~ 192 |
Front brake caliper to knuckle | 80 ~ 100 | 800 ~ 1000 | 58 ~ 74 |
Front lower arm ball joint self locking nut | 100 ~ 120 | 1000 ~ 1200 | 74 ~ 89 |
Wheel nut | 90 ~ 110 | 900 ~ 1100 | 66 ~ 83 |
Knuckle to front strut assemble | 100 ~ 120 | 1000 ~ 1200 | 74 ~ 89 |
Stabilizer bar link mounting nut | 100 ~ 120 | 1000 ~ 1200 | 74 ~ 89 |
Tie rod end to knuckle mounting nut | 24 ~ 34 | 240 ~ 340 | 18 ~ 25 |
Front axle dust cover mounting | 7 ~ 11 | 70 ~ 110 | 5 ~ 8 |
Rear wheel bearing flange nut | 200 ~ 260 | 2000 ~ 2600 | 148 ~ 192 |
Rear brake caliper mounting bolt | 50 ~ 60 | 500 ~ 600 | 37 ~ 44 |
Trailing arm to rear spindle mounting bolt | 80 ~ 90 | 800 ~ 900 | 58 ~ 66 |
Differential mounting rear bracket | 80 ~ 100 | 800 ~ 1000 | 58 ~ 74 |
Differential carrier mounting bracket | 70 ~ 80 | 700 ~ 800 | 51 ~ 58 |
Differential pinion nut | 190 ~ 250 | 1900 ~ 2500 | 139 ~ 183 |
Replace the self-locking nuts with new ones after removal.
ITEMS | SPECIFIED LUBRICANTS | QUANTITY |
Propeller shaft | ||
Universal joint | ALVANIA EP #2 | Reguired |
VL joint assembly | REAMAX FS NO.1 | 95 ± 5 gr. |
Center bearing | ALVANIA EP #2 | Rreguired |
Rubber coupling | ALVANIA EP #2 | 8 ~ 10 gr. |
Driveshaft | ||
T.J.-B.J. Type driveshaft (For 2.0L Diesel and 2.4L) | ||
B.J. boot grease | RRB | 150 gr. |
T.J. boot grease | CK-2 | 220 gr. |
D.O.J.-B.J. Type driveshaft (2.7 A/T) | ||
B.J. boot grease | CENTOPLEX 278M/136K | 135 ± 6 gr. (joint : 70 ± 3 gr. boot : 65 ± 3 gr. |
D.O.J. boot grease | AMBLYGON TA 10/2A | 105 ± 6 gr. (joint : 65 ± 3 gr. boot : 40 ± 3 gr. |
D.O.J.-B.J. Type driveshaft (Rear driveshaft) | ||
B.J. boot grease | CENTOPLEX 278M/136K | 110 ± 6 gr. (joint : 55 ± 3 gr. boot : 55 ± 3 gr. |
D.O.J. boot grease | AMBLYGON TA 10/2A | 100 ± 6 gr. (joint : 60 ± 3 gr. boot : 40 ± 3 gr. |
Bearing bracket assembly | Sunlight-2 | Inner dust seal : 8 ~ 12 gr. Outer dust seal : 14 ~ 20 gr. |
Differential carrier | Hypoid gear oil | 1.1 L |
(API GL-5, SAE 80W/90, SHELL SPIRAX AX equivalent) | (Supply to the level of oil filler plug hole bottom) | |
Items | Specified sealants and adhesives |
Threaded holes of the drive gear | LOCTITE #262 or equivalent |
Differential cover installation surface (to gear carrier) | THREEBOND #1215 or equivalent |
Surface of the VL joint ball groove | 3M ATD Part No. 8121 or 3M ATD Part No. 8155 or equivalent |
