1.

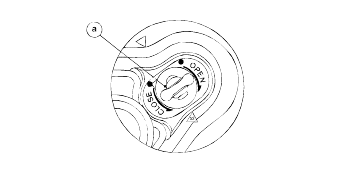

Smoothly pull and turn the handle to the right.
Smoothly pull and turn the handle to the right.
Pull out the plug assembly.
After using (-) driver to increase the clearance between cylinder head cover and plug assembly.
Apply oil to the gasket of the plug.
Push the plug assembly into the hole and then turn the handle to the left.
Whenever installing the plug, always replace a new one.
Using a special tool (09351 - 27400), install the injector oil seal.

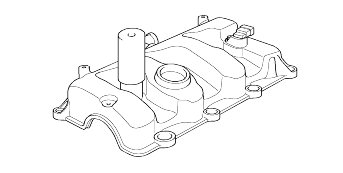

Tighten the rocker cover bolts to the specified torque.
Tightening torque : |
8 - 10 Nm (80 - 100 kg.cm, 6 - 7 lb.ft) |
