INSTALLATION
1.

Tighten the rear strut lower mounting bolt.

2.

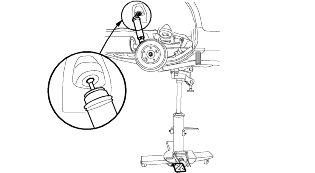

Lift up the trailing arm with a jack, inserting the strut's rod in the hole as illustrated below.

3.

Install the actuator-cap.

4.

Tighten the rear strut upper mounting nut.

5.

Install the rectangrlar-shaped cover.

6.

Shut down the tail-gate.
