1.

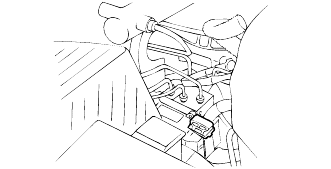

Disconnect the HECU (Hydraulic and electronic Control Unit) and motor connector.
Disconnect the HECU (Hydraulic and electronic Control Unit) and motor connector.
Disconnect the brake lines from the HECU.

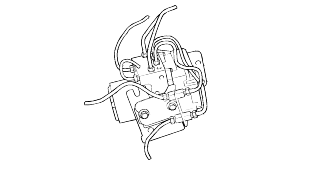

Remove the HECU bracket mounting bolt and the HECU.
Never attempt to disassemble the HECU.
The HECU must be transported and stored in the upright position and with sealed ports. The HECU must not be drained.
