2.
Turn the ignition switch to ON and check the output voltage of G-sensor.
Standard value : 2.5V |

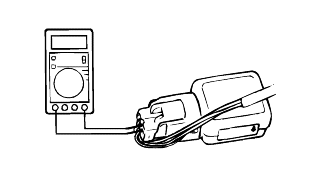

Insert the probes of voltmeter to the back of the harness side of G-sensor connector 2 and 3.
Turn the ignition switch to ON and check the output voltage of G-sensor.
Standard value : 2.5V |

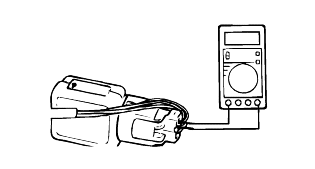

Secure the G-sensor so that the arrow mark of the sensor mounting surface is facing straight down, and then check the output voltage between terminal2 and 3.
Standard value : 3.5V |
In the case that the voltage is outside the standard value, and there is no abnormality in power supply and ground wires, replace the G-sensor.
