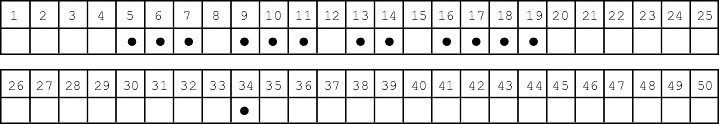

1

Not used

-

2

Not used

-

3

Not used

-

4

Not used

-

5

Battery supply

Input

6

GND

Input

7

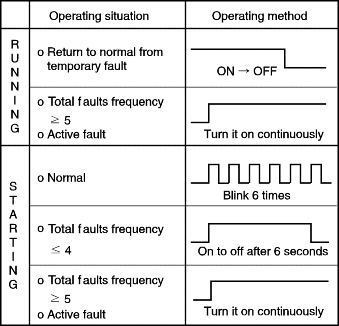

Warning lamp

Output

8

Not used

-

9

K-Diagnostic line

Input/output

10

Driver airbag, High

Output

11

Driver airbag, Low

Output

12

Not used

-

13

Passenger airbag, High

Output

14

Passenger airbag, Low

Output

15

Not used

-

16

Passenger belt pretensioner, Low

Output

17

Passenger belt pretensioner, High

Output

18

Driver belt pretensioner, High

Output

19

Driver belt pretensioner, Low

Output

20

Not used

-

21

Not used

-

22-25

Not used

-

26-29

Shorting bar

-

30

Not used

-

31-32

Shorting bar

-

33

Not used

-

34

Crash output

Output

35-36

Shorting bar

-

37

Not used

-

38-39

Shorting bar

-

40

Not used

-

41-44

Shorting bar

-

45

Not used

-

46

Not used

-

47-50

Not used

-

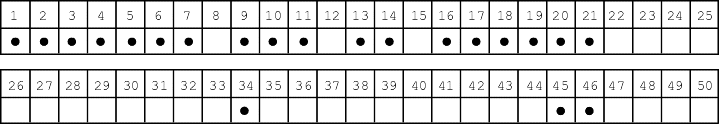

1

Passenger side airbag, High

Output

2

Passenger side airbag, Low

Output

3

Driver side airbag, Low

Output

4

Driver side airbag, High

Output

5

Battery supply

Input

6

GND

Input

7

Warning lamp

Output

8

Not used

-

9

K-Diagnostic line

Input/output

10

Driver airbag, High

Output

11

Driver airbag, Low

Output

12

Not used

-

13

Passenger airbag, High

Output

14

Passenger airbag, Low

Output

15

Not used

-

16

Passenger belt pretensioner, Low

Output

17

Passenger belt pretensioner, High

Output

18

Driver belt pretensioner, High

Output

19

Driver belt pretensioner, Low

Output

20

Driver satellite sensor, High

Input/output

21

Passenger satellite sensor, High

Input/output

22-25

Not used

-

26-29

Shorting bar

-

30

Not used

-

31-32

Shorting bar

-

33

Not used

-

34

Crash output

Output

35-36

Shorting bar

-

37

Not used

-

38-39

Shorting bar

-

40

Not used

-

41-44

Shorting bar

-

45

Driver satellite sensor, Low

Input/output

46

Passenger satellite sensor, Low

Input/output

47-50

Not used

-
