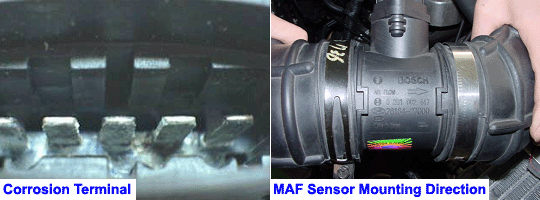

Contact resistance, corrosion, bent or broken terminals, loose wires, crack, damage etc.

The poor attachment of airflow, cut air duct and air cleaner filter branched from MAF sensor.

The mounting direction of MAF sensor.

Disconnect the MAFS

Connect the ohmmeter probes to the IATS terminal 5 and the terminal 3, measure the resistance

- Replace the MAFS if there is no continuity

a.

Specification : 2.29 ∼2.55 ㏀ at 20℃

caution

Be aware that if the engine is warm up, the reading will be higher than ambient temperature. For checking the IATS current data with the scan tool or resistance You can measure the resistance while heating sensor using a electrical hair drier to the inlet of MAFS.value, The resistance will be decreased as the heat increase, the resistance remains unchanged, Replace the IATS (MAFS)

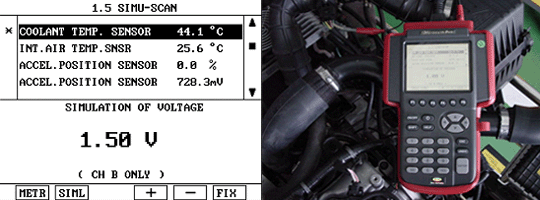

SIMU - SCAN FUNCTION IN THE SCAN TOOL (SIMV)

The SIMU-SCAN feature is capable of generating simulated voltage, frequency, and duty cyle that can be used for in-depth diagnosis while displaying current The SIMU-SCAN also allows raw and current data to be displayed simultaneouslyinformation. This test is to inspect whether or not ECM receives the output signal normally from the sensor by using a SIMU-SCAN function of the scan tool indirectly. At the same time, user is able to check the open circuit and the short circuit to ground through a scantool simulation function indirectly.

CONNECTION METHOD

① Connect to the DLC cable 16 pins to the scantool

② The probe in channel B should be connected in order to input signals for the simulation of voltage

③ Select SIMU-SCAN in Hyundai vehicle diagnosis which allows sensor outut generation and current data analysis to be performed simultaneosly

HOW TO OPERATE

Pressing this key activites sensor output Voltage simulation. The voltage generated through channel B can be set using the (+) and (-) keys in 20 ㎷ steps. If the set voltage and the applied voltage differ by less than 10%, voltage feed back control is maintained by scantool.

caution

If the difference voltage exceeds 10%, the follwing message is displayed and no voltage output occurs. " SIMULATION SIGNAL IS DISTORETED CHECK PROBE, PRESS [ENTER] "
