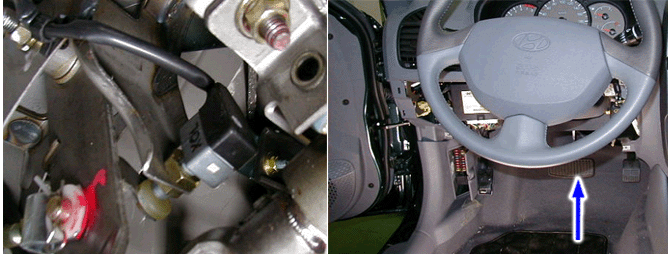

The New Alpha Automatic Transmission‘s function, of intelligence control, is based on the Fuzzy Control System. The Fuzzy Control System determines optimal gear positions as related to driver‘s intention and current driving conditions. The Brake Switch provides important information by deciding whether the vehicle is decelerating by the depression of the brake pedal, or if the speed is decreasing because the vehicle is running uphill.
The TCM sets this code if a Brake Switch signal is input continuously, for an extended period of time, when the vehicle is supposed to be running (moving).
Item | Detecting Condition & Limp Home | Possible Cause |
DTC Strategy | ● Circuit continuity- +Short B | ● Line Short between PCM C33-2 Terminal 18 and C31 Terminal 2 with 12V ● BRAKE SW adjustment is Faulty. ● BRAKE SW Faulty. |
Enable Conditions | ● OUTPUT SPEED ≥ 240rpm ● TPS > 5.1% | |
Threshold Value | ● Voltage ≥ 8V | |
Diagnostic Time | ● More than 5 min. | |
Fail Safe | ● Prohlbit FUZZY control |
