4.

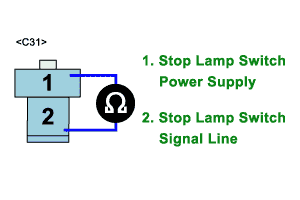

For pressing down Foot Brake SW by hand measure resistance.
a.
Specification ∞Ω
IG KEY : OFF
BRAKE SW Connector : Disconnect.
Get out of BRAKE SW.
For pressing down Foot Brake SW by hand measure resistance.
Specification ∞Ω
Is measured value ∞ Ω ?
YES
Install and adjust Brake SW . Go to Verification of Vehicle Repair procedure.
NO
Replace Brake SW.
