3.
Has a problem been found?
YES
a.
Repair as necessary and then go to "Verification of Vehicle Repair" procedure.
NO
a.
Go to "Signal Circuit Inspection" procedure.
Many malfunctions in the electrical system are caused by poor harness(es) and terminals. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
Has a problem been found?
YES
Repair as necessary and then go to "Verification of Vehicle Repair" procedure.
NO
Go to "Signal Circuit Inspection" procedure.
Ignition "ON" & Engine "OFF".
Press the brake pedal.

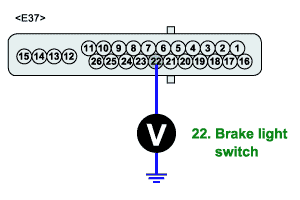

Measure voltage between the terminal "22" of the HECU harness connector and chassis ground
Specification : Approx. B+
Is the measured voltage within specifications?
YES
Fault is intermittent caused by open in brake light switch harness, Faulty brake light switch or was repaired and HECU memory was not cleared. Go to the applicable troubleshooting procedure.
NO
Check for damaged harness and poor connection in the power harness between the battery terminal(+) and the terminal "22" of the HECU harness connector . Check for open or blown 15A ABS fuse and brake right bulbs referring to "Circuit Diagram" and brake right bulbs. Repair as necessary and then go to "Verification of Vehicle Repair" procedure.
