3.
Has a problem been found?
YES
a.
Repair as necessary and go to "Verification of Vehicle Repair" procedure
NO
a.
Go to "Pretensioner Circuit Inspection1" procedure
Many malfunctions in the electrical system are caused by poor harness(es) and terminals. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
Has a problem been found?
YES
Repair as necessary and go to "Verification of Vehicle Repair" procedure
NO
Go to "Pretensioner Circuit Inspection1" procedure
Check for circuit condition of Pretensioner Squib.
Ignition OFF.
Disconnect the battery (+) & (-) terminal cable from the battery, and wait at least one minutes.
Disconnect PBPT module and connect the dummy (0957A-38200) and dummy adapter (0957A-38400) to main harness connector.
If you don’t have Dummy resister, use new PBPT with normal condition or resister (2Ω).
Connect the battery (+) & (-) terminal cable to the battery and Ignition "ON" & Engine "OFF".
Using a scan tool, clear the DTC.
Monitor the diagnosis trouble code.
Is DTC "B1370" present ?
YES
Short battery to circuit , repair as necessary and go to "Pretensioner Circuit Inspection2" procedure.
NO
Short in the passenger’s pretensioner squib, substitute a known-good passenger’s pretensioner assembly, and check for proper operation.
If the problem is corrected, replace passenger’s pretensioner and then go to "Verification of Vehicle Repair" procedure.

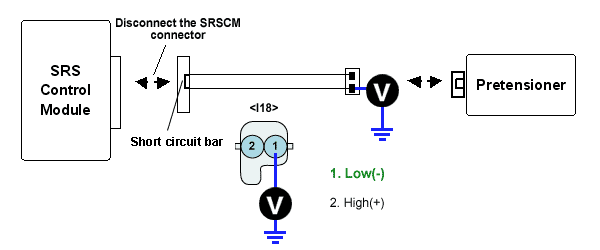

Check for a short circuit in the SRS wiring harness.
Ignition "OFF" and wait at least one minutes.
Disconnect Pretensioner connector from SRSCM harness.
Ignition "ON" & Engine "OFF".
Measure voltage between terminal 1 or 2 of the main harness connector and chassis ground.
Specification : Approx. 0~0.5V(No voltage)
Is the measured resistance within specification?
YES
Poor contact at the SRS main harness connector; check the connector and condition of SRSCM.
If the connector is OK,substitute a known-good SRSCM, and check for proper operation.
If the problem is corrected, replace SRSCM and then go to "Verification of Vehicle Repair" procedure.
If the problem is still present, substitute the SRS main harness and check for proper operation.
If the problem is corrected, replace SRS main harness and then go to "Verification of Vehicle Repair" procedure.
NO
Short battery to the SRS main harness, substitute the SRS main harness and check for proper operation.
If the problem is corrected, replace SRS main harness and then go to "Verification of Vehicle Repair" procedure.
