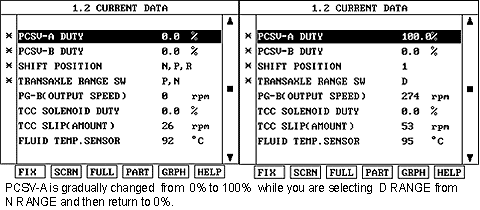

Monitor Scantool Data
1.

IG KEY : ON, Engine : ON

2.

Connect Scantool,select Service Data

3.

Select PCSV-A

4.

Lift a vehicle

5.

Select D RANGE from N RANGE and accelerate

6.

Verify that PCSV-A data is changed in a moment

7.

Is that displayed near the specified value?

YES

a.

Go to “Terminal and Connector Inspection” of the W/Harness Inspection procedure

NO

a.

Go to Power Inspection of W/Harness Inspection in Inspection & Repair procedure.
