3.
Measure Resistance of solenoid.
a.

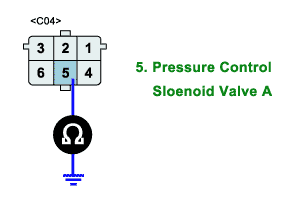

Channel1 Prove(+) : C04 Terminal 5 PCSV-A
b.
Channel1 Prove(-) : chassis GND
c.
Specification: approx 22.3 ± 1.5Ω is normal (20℃)
IG KEY : OFF
Solenoid Connector : Disconnect
Measure Resistance of solenoid.
Channel1 Prove(+) : C04 Terminal 5 PCSV-A
Channel1 Prove(-) : chassis GND
Specification: approx 22.3 ± 1.5Ω is normal (20℃)
Is Solenoid Resistance exact value?
YES
Go to Controller inspection.
NO
Replace Pressure control solenoid velve A ( In case of no supplied parts, Replace A/T)
IG KEY : ON. Engine : OFF.
All Connector :connect
Connect Scantool DLC to vehicle.
Use PCSV A Actuator Testing Function in Scantool.
For using Actuator Testing Function, verify that you can hear operating tone of PCSV A.
Can you hear oprerating tone of Solenoide?
YES
Verify Verification Veh. Repair
NO
PCM faulty
Repair, verify Verification Veh. Repair
