3.
Measure Resistance of solenoid.
a.

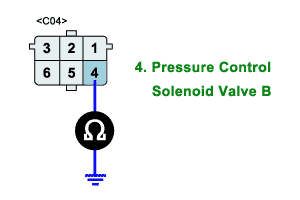

Channel1 Prove(+) : C04 Terminal 4 PCSV-B
b.
Channel1 Prove(-) : Chassis GND
c.
Specification : approx 22.3 ± 1.5Ω is normal (20℃)
IG KEY : OFF
Solenoid Connector : Disconnect
Measure Resistance of solenoid.
Channel1 Prove(+) : C04 Terminal 4 PCSV-B
Channel1 Prove(-) : Chassis GND
Specification : approx 22.3 ± 1.5Ω is normal (20℃)
Is Solenoid Resistance exact value?
YES
Go to Controller inspection
NO
Replace Pressure control solenoid velve A ( In case of no supplied parts, Replace A/T)
IG KEY : ON. Engine : OFF.
All Connector : connect
Connect Scantool DLC to vehicle.
Use PCSV B Actuator Testing Function in Scantool.
For using Actuator Testing Function, verify that you can hear operating tone of PCSV B
Can you hear oprerating tone of Solenoid?
YES
Verify Verification Veh. Repair
NO
PCM faulty
Repair, Verify Verification Veh. Repair.
