IG KEY : ON, Engine : ON

Connect Scantool, select Service Data

Select PCSV-B

Lift a vehicle.

Select D RANGE from N RANGE and accelerate

Verify that PCSV-B data is changed in a moment.

caution

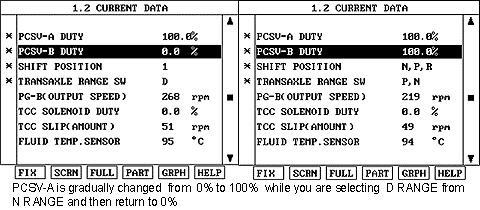

<Scantool normal data>

- Start a vehicle, Verify terminated diagnosis of parts ,which is fixed properly

- Remove all trouble code and then check for trouble code again

- In occuring trouble , try cranking more than 2 times and then verify alarm light.

Monitoring for (pending) DTC. Is DTC P0775 set?

YES

NO

IG KEY : ON, Engine : ON

Connect Scantool, select Service Data

Select PCSV-B

Lift a vehicle.

Select D RANGE from N RANGE and accelerate

Verify that PCSV-B data is changed in a moment.

caution

<Scantool normal data>

- Start a vehicle, Verify terminated diagnosis of parts ,which is fixed properly

- Remove all trouble code and then check for trouble code again

- In occuring trouble , try cranking more than 2 times and then verify alarm light.

Monitoring for (pending) DTC. Is DTC P0775 set?

YES

NO
