3.

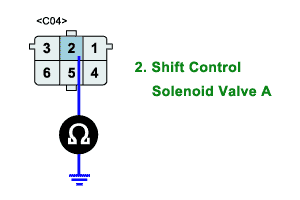

Measure Resistance of solenoid.
a.
Channel 1 Prove(+) : solenoid A C04 terminal 2
b.
Channel 1 Prove(-) : chassis GND
c.
Specification: approx 22.3 ± 1.5Ω is normal (20℃)
IG KEY : OFF
solenoid Connector : Disconnect.
Measure Resistance of solenoid.
Channel 1 Prove(+) : solenoid A C04 terminal 2
Channel 1 Prove(-) : chassis GND
Specification: approx 22.3 ± 1.5Ω is normal (20℃)
Is Solenoid Resistance exact value?
YES
Go to Controller inspection
NO
Replace Shift control solenoid A ( In case of no supplied parts , Replace A/T)
IG KEY : ON. Engine : OFF.
Connect all Connector
Connect Scantool DLC to vehicle.
Use SCSV A Actuator Testing Function in Scantool.
For using Actuator Testing Function, verify that you can hear operating tone of SCSV A.
Can you hear oprerating tone of Solenoid?
YES
System ok
Verify Verification Veh. Repair
NO
PCM Faulty
Repair and then verify Verification Veh. Repair procedure.
