6.
Verify that DCCSV(DAMPER CLUTCH CONTROL SOLENOID VELVE) data is changed in a moment while shifting gear from 1st to 4th in D RANGE, you know that PCM control DCC
IG KEY : ON , Engine : ON
Connect Scantool,select Service Data procedure.
Select DCCSV(DAMPER CLUTCH CONTROL SOLENOID VELVE)
Lift a vehicle
Accelerate vehicle more than 4th gear position in D RANGE

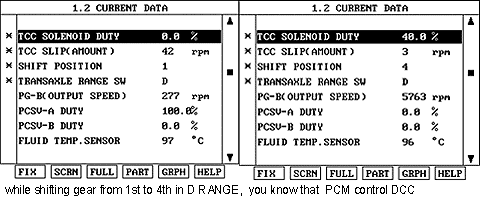

Verify that DCCSV(DAMPER CLUTCH CONTROL SOLENOID VELVE) data is changed in a moment while shifting gear from 1st to 4th in D RANGE, you know that PCM control DCC
Is that displayed near the specified value?
YES
Go to “Terminal and Connector Inspection” of the W/Harness Inspection procedure
NO
Go to Power Inspection of W/Harness Inspection in Inspection & Repair procedure.
