5.
Can you hear operating tone for using DCCSV(DAMPER CLUTCH CONTROL SOLENOID VELVE) Actuator Test ?
YES
a.
Go to Conmponent Inspection
NO
a.
Replace DCC Solenoide.(If it is impossible to replace parts, replace A/T )
IG KEY: ON,
Connect SCANTOOL DLC to vehicle.
Select A/T Solenoide Actuator Test in SCANTOOL.
Do Actuator Test.
Can you hear operating tone for using DCCSV(DAMPER CLUTCH CONTROL SOLENOID VELVE) Actuator Test ?
YES
Go to Conmponent Inspection
NO
Replace DCC Solenoide.(If it is impossible to replace parts, replace A/T )
Lift a vehicle

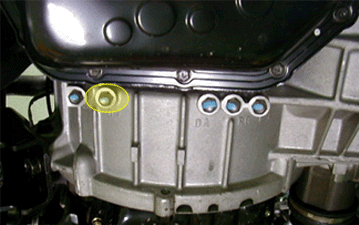

Install Oilpressure guage to DR port
IG KEY : ON , Engine : ON
Connect Scantool,select Service Data procedure.
Drive vehicle more than gear position 4 in D RANGE and make more than DCCSY DUTY 39%.
If DCCSV(DAMPER CLUTCH CONTROL SOLENOID VELVE) DUTY is more than 39% , what is oil pressure value? (0kg/cm2 )
YES
DCC faulty (replace Torque Converter )
Repair , Verify Verification Veh. Repair procedure.
NO
A/T faulty (possible to body control valve faulty.)
Repair , verify Verification Veh. Repair procedure.
