3.
Measure Resistance of solenoid.
a.

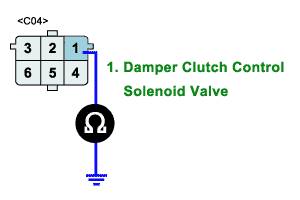

Channel1 Prove (+) : C04 Terminal 1 DCCSV(DAMPER CLUTCH CONTROL SOLENOID VALVE)
b.
Channel 1 Prove(-) : chassis GND
c.
Specification: approx 22.3 ± 1.5Ω is normal (20℃)
IG KEY : OFF
Solenoid Connector : Disconnect
Measure Resistance of solenoid.
Channel1 Prove (+) : C04 Terminal 1 DCCSV(DAMPER CLUTCH CONTROL SOLENOID VALVE)
Channel 1 Prove(-) : chassis GND
Specification: approx 22.3 ± 1.5Ω is normal (20℃)
Is Solenoid Resistance exact value?
YES
Go to Controller inspection
NO
Replace DAMPER CLUTCH CONTROL SOLENOID VALVE ( In case of no supplied parts , Replace A/T)
IG KEY : ON. Engine: OFF.
All Connector :connect
Connect Scantool DLC to vehicle.
Use DCCSV(DAMPER CLUTCH CONTROL SOLENOID VALVE) Actuator Testing Function in Scantool.
For using Actuator Testing Function, verify that you can hear operating tone of DCCSV(DAMPER CLUTCH CONTROL SOLENOID VALVE)
Can you hear oprerating tone of Solenoide?
YES
Go to “Verify Verification Veh. Repair”
NO
PCM faulty
Repair, Verify Verification Veh. Repair.
