The value of the input shaft speed should be equal to the value of the output shaft speed, when multiplied by the 3rd gear ratio, while the transaxle is engaged in the 3rd gear. For example, if the output speed is 1,000 rpm and the 3rd gear ratio is 1.000, then the input speed is 1,000 rpm.
This code is set if the value of input shaft speed is not equal to the value of the output shaft, when multiplied by the 3rd gear ratio, while the transaxle is engaged in 3rd gear. This malfunction is mainly caused by mechanical troubles such as control valve sticking or solenoid valve malfuctioning rather than an electrical issue.
Item | Detecting Condition & Limp Home | Possible Cause |

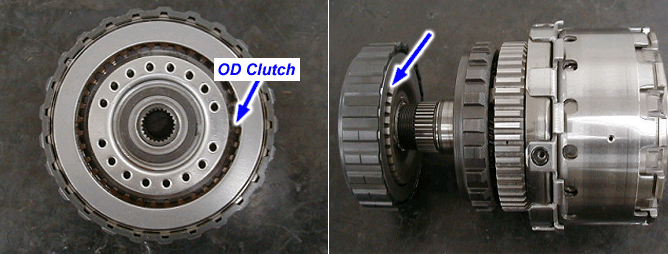

DTC Strategy | ● Rationality-high | ● Inspection components related to UD and OD clutch in A/T ● In case of incorrection of output speed signal ● In case of incorrection of output speed signal |
Enable Conditions | ● Engine speed >400rpm, ● Output shaft speed >500rpm, ● Shift stage 3st. gear, ● Input speed >0rpm, ● A/T oil temperature >10℃ ● A/T range switch rationality Only one signal ● A/T range switch D, 2, L ● Time after shift changing finish >2sec | |
Threshold Value | ● ㅣinput speed/3rd gear ratio - output speed ㅣ≥200rpm /3st. gear ratio | |
Diagnostic Time | ● More than 1sec | |
Fail Safe | ● Detect once, diagnosis output and dectect 4 times, 3 rd gear (D RANGE ) or 2nd gear(2,L RANGE) |
