Many malfunctions in the electrical system may caused from poor harness and terminals. These faults can be caused by interference from other electrical systems and mechanical or chemical damage.
Check the following conditions:
Check for damaged harness and terminals: contact resistance, oxidation, bent or broken terminals.
Check for poor connection between ECM and component: backed out terminal, improper mating, broken locks and poor terminal to wire connection
Using a suitable male pin to ensure that contact in sockets is good. The pin should remain in position when pulled gently.
Has a problem been found?
YES
Repair as necessary and go to "Verification of Vehicle Repair" procedure
NO
System OK.
IG KEY : ON, Engine : OFF
INPUT CONNECTOR SENSOR : Disconnect

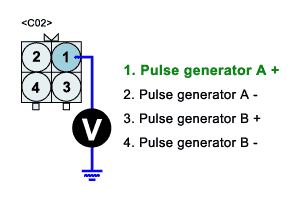

Connect multimeter in scantool, measure voltage Scantool.
Channel 1 Prove(+) : PULSE GENERATOR A C02 Terminal 1 SENSOR SiGNAL
Channel 1 Prove(-) : Battery(-).
Specification : 1.45V
Is approx. 1.45V measured ?
YES
(PCM and SENSOR are normal) Go to Ground sircuit inspection.
NO
Verify line Open or Short between PCM C33-2 Terminal 21 and C02 Terminal 1.
If line is normal, go to Controller inspection .
IG KEY : ON , Engine : OFF
PULSE GENERATOR A CONNECTOR : Disconnect

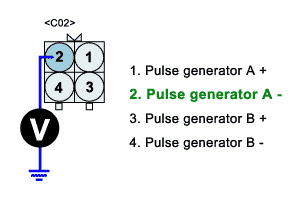

measure voltage between between PCM C02 Terminal 2 and GND by using Multimeter.
Channel 1 Prove(+) : PULSE GENERATOR A C02 Terminal 2 SENSOR SiGNAL
Channel 1 Prove(-) : Battery(-).
Specification : 1.7V
Is measured value 1.7v ?
YES
Go to Conponent Inspection
NO
Verify line Open or Short between PCM C33-2 Terminal 28 and C02 Terminal 2.
if line is normal, go to Controller inspection .
