4.
Compare with under Standard Data.
caution

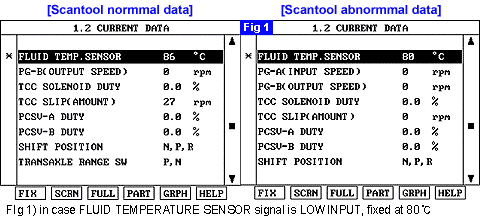

<Scantool normal data>
IG KEY : ON, Engine: ON
Connect Scantool,select Service Data procedure.
Warm up Engine sufficiently.
Compare with under Standard Data.
<Scantool normal data>
Is that displayed near the specified value?
YES
Go to "Terminal and Connector Inspection" of the W/Harness Inspection procedure
NO (Data is fixed at 80℃)
Go to W/Harness Inspection ofInspection & Repair procedure.
