Many malfunctions in the electrical system are caused by poor harness(s) and terminals. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
Check the following conditions:
Check for damaged harness and terminals: contact resistance, oxidation, bent or broken terminals.
Check for poor connection between ECM and component: backed out terminal, improper mating, broken locks and poor terminal to wire connection
Using a suitable male pin to ensure that contact in sockets is good. The pin should remain in position when pulled gently.
Has a problem been found?
YES
Repair as necessary and go to "Verification of Vehicle Repair" procedure
NO
System OK
IG KEY : ON, Engine: OFF
FLUID TEMPERATURE SENSOR C03 Connoctor :Disconnect

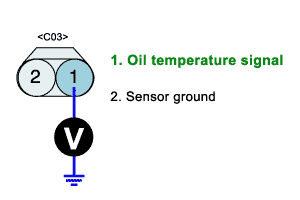

Measure voltage between FLUID TEMPERATURE SENSOR C03 Terminal 1 and GND with MULTIMETER.
Channel1 Prove(+) :FLUID TEMPERATURE SENSOR output signal C03 Terminal 1
Channel1 Prove(-) : Battery(-).
Specification : Approx. 5V
Is approx. 5V measured ?
YES
Go to Ground circuit Inspection
NO
Verify line Open or Short between PCM C33-2 Terminal 25 and C03 Terminal 1.
Repair and then verify Verification Veh. Repair procedure.
IG KEY : ON, Engine: OFF
Solenoid Connector : Disconnect
Measure voltage between TRANSMISSION FLUID TEMPERATUREERATURE SENSOR C03 Terminal 1 and Battery(+)
Channel1 Prove (+) : Battery(+).
Channel1 Prove (-) :FLUID TEMPERATUREERATURE SENSOR C03 Terminal 2 Sensor GND.
Specification : 12V
Is measured value 12v ?
YES
Go to Component Inspection
NO
Verify line Open or Short between PCM C33-2 Terminal 25 and C03 Terminal 2.
Repair and then verify Verification Veh. Repair procedure.
If line is normal, go to Controller inspection .
