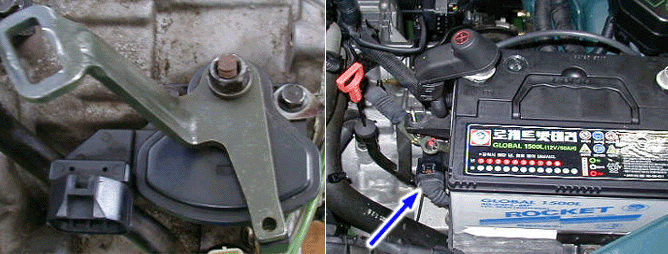

The Transaxle Range Switch sends the shift lever position information to the TCM using a 12V (battery voltage) signal. When the shift lever is in the D (Drive) position the output signal of Tansaxle Range Switch is 12V and in all other positions the voltage is 0V. The TCM judges the shift lever position by reading all signals, for the Transaxle Range Switch, simultaneously.
The TCM sets this code when the Transaxle Range Switch has no output signal for an extended period of time.
Item | Detecting Condition & Limp Home | Possible Cause |
DTC Strategy | ● Lack of circuit continuity | ● Check for transaxle range switch to supply power ● Check for open or short in transaxle range switch circuit ● Check for transaxle range switch faulty ● Check for TCU faulty |
Enable Conditions | ● Engine speed ≥ 500rpm | |
Threshold Value | ● No input signals are activated | |
Diagnostic Time | ● More than 30sec | |
Fail Safe | ● Recognition as privious signal ● When you can select N RANGE to D RANGE , have not signal ,recognize N RANGE. ● When you can select D RANGE to N RANGE , have not signal ,recognize D RANGE. |
Range S/W(C33-2) | 6&9/C33-2 | 6&10/C33-2 | 6&12/C33-2 | 6&11/C33-2 | 4&6/C33-2 | 2&6/C33-2 | ||||||
Gear selection | P | Others | R | Others | N | Others | D | Others | 2 | Others | L | Others |
Specification | 0Ω | Infinite | 0Ω | Infinite | 0Ω | Infinite | 0Ω | Infinite | 0Ω | Infinite | 0Ω | Infinite |
