5.
Compare with under the normal data.
IG KEY : ON , Engine : ON

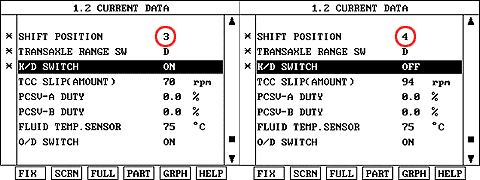

Connect the Scantool,select the service data.
Select KICK DOWN SERVO SWITCH
Speed up and Shift gear.
Compare with under the normal data.
Is KICK DOWN SERVO SWITCH displayed near the specified value?
YES
Go to “Terminal and Connector Inspection” of the W/Harness Inspection procedure
NO
Go to W/Harness Inspection of Inspection & Repair procedure.
