DTC

P0231

Electric Fuel Pump Circuit Low

P0232

Electric Fuel Pump Circuit High

DESCRIPTION

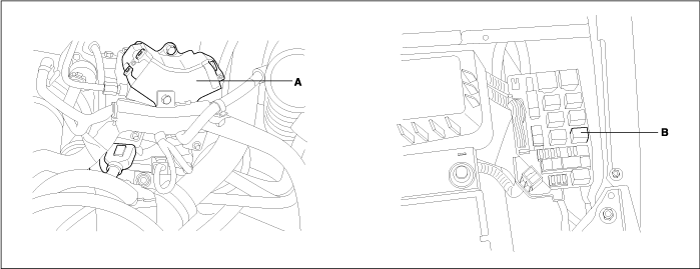

Electric fuel pump is not only responsible for delivering the fuel to the high-pressure pump(A), but within the framework of system monitoring it must also interrupt the flow of fuel in case of an emergency. Beginning with the engine cranking process, the electric fuel pump runs continuously independent of engine speed. Excess fuel can flow back to the tank through an overflow valve. The engine control module(ECM) controls the electric fuel pump through the electric fuel pump relay(B).

DTC DETECTING CONDITION

DTC No

Detecting Condition & Limp Home

Suspect area

P0231

P0232

Detecting Condition

P0231 : Breaking of wire.

P0232 : Short circuit to power supply line.

Enable Condition

Ignition switch : ON

Limp Home

None

-Open or short in electric fuel pump relay circuit

- Electric fuel pump relay

- ECM

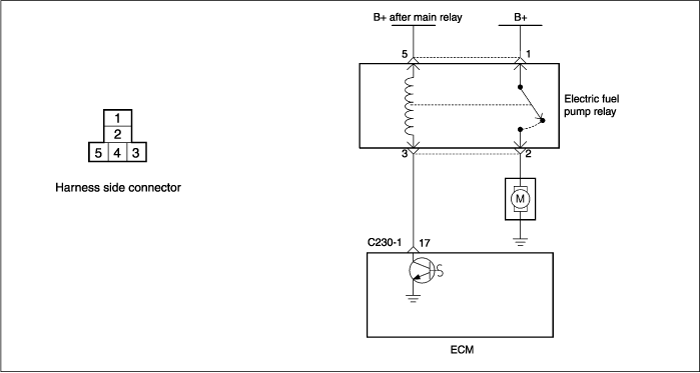

SCHEMATIC DIAGRAM

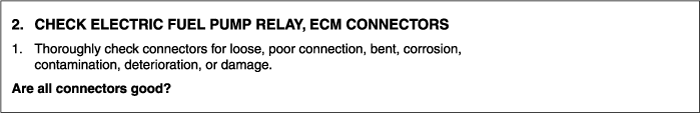

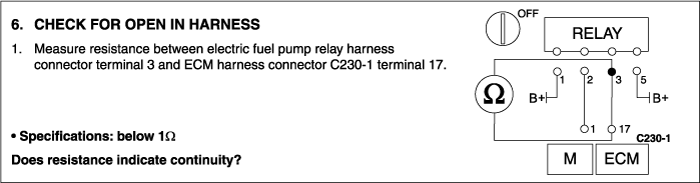

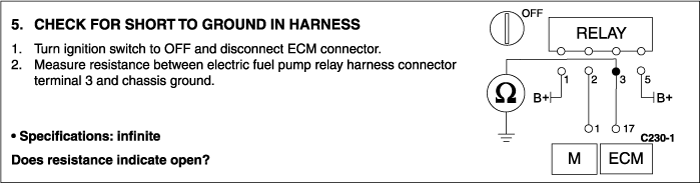

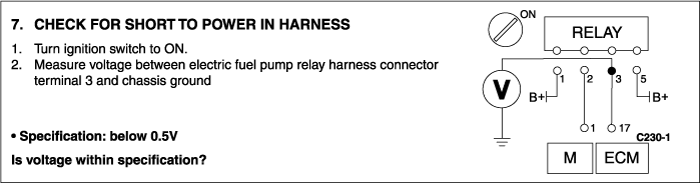

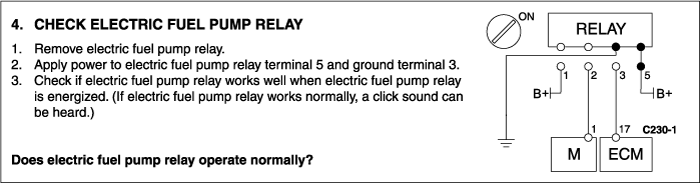

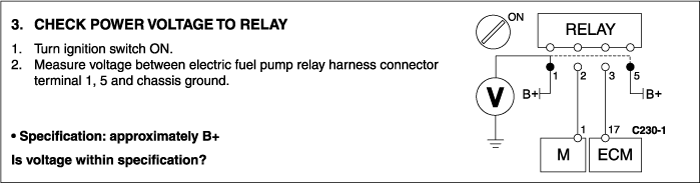

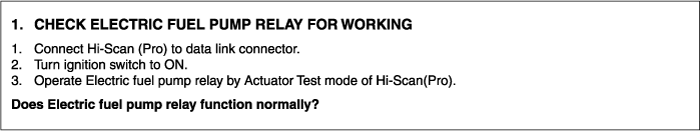

INSPECTION PROCEDURES

Proceed with ECM problem procedure.
