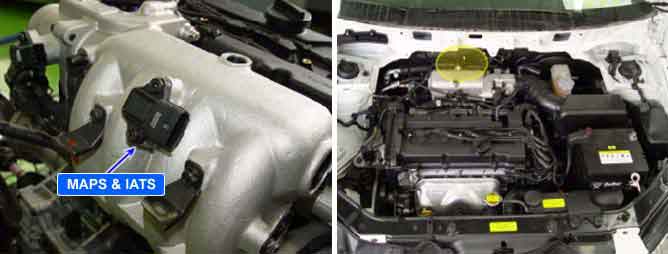

The Intake Air Temperature (IAT) sensor measures the temperature of engine intake air. The Intake Air Temperature (IAT) sensor is a thermistor (a variable resistor that changes along with outside air temperature) in series with a fixed resistor in the PCM. The PCM applies 5V to the IAT sensor. The PCM monitors the voltage across the IAT sensor and converts it into a temperature reading. When the outside air temperature is cold the IAT sensor resistance is high, and when the outside air temperature is warm the IAT sensor resistance is low. Therefore, when the air temperature is cold the PCM will receive a high voltage input, and when the air temperature is warm the PCM will receive a low voltage input. The signal from IAT sensor is used for injection duration correction, ignition timing correction and idle speed correction(Air-density correction).
If measured temperature is lower than the minimum threshold value during 2sec, ECM sets DTC P0113.
(In this case, the input signal voltage is the maximum threshold vaue.)
Item | Detecting Condition | Possible Cause |
DTC Strategy | ● Signal check, high | ● Poor connection ● Open or short to power in signal circuit ● Open in ground circuit ● IATS ● ECM |
Enable Conditions | ● Idle and no fuel cut-off ● No fault on ECTS and VSS ● Integrated air mass > 24kg | |
Threshold Value | ● Measured temperature < -38 ℃ | |
Diagnostic Time | ● 2 sec | |
MIL ON Condition | ● 3 driving cycle |
Pressure[kPa] | 20.0 | 35.0 | 60.0 | 95.0 | 107 |
Output Voltage(V) | 0.79 | 1.38 | 2.37 | 3.75 | 4.22 |
