Terminal and Connector Inspection
Check for Wiring Harness
1.

Check for damaged harness and terminals including rubber seals :

-. contact resistance, oxidation, corrosion, bent or broken terminals

-. harness connector connection, loose wires etc.

2.

Check for poor connection between ECM and component :

-. backed out terminal, improper mating, broken locks and poor terminal to wire connection

3.

ARE THE WIRES O.K ? & ARE THE CONNECTIONS O.K ?

YES

a.

Go to "Signal Circuit Inspection" procedure

NO

a.

Repair as necessary and go to " Verification of Vehicle Repair " procedure

Signal Circuit Inspection
Problem Verification
1.

DTCs listed below are stored in the scan tool

P1628/P1629

2.

Check items with the scan tool and the multimeter

① Wiring harness inspection

② Check the fuse

③ Check the relay resistance

3.

Specification

a.

Resitance : below 1 Ω for open in the wire

b.

Resitance : infinite for short to ground in the wire

c.

Voltage : below 0.5V for short to power in the wire

caution

Refer to the component and full circuit for connector configrations details

P1628 : A/C Condensor Fan - Open or Short Circuit
4.

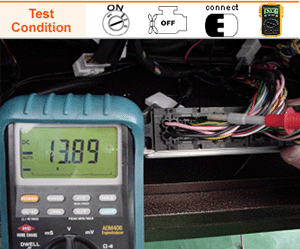

Turn the ignition switch ON, and measure the voltage at the ECM terminal 19/C230-1.

5.

IS THERE A BATTERY VOLTAGE ?

YES

a.

Go to step 3

NO

a.

Repair open or short in the wire between the radiator fan relay No.2 terminal 1 and the radiator fuse (30A)

b.

Repair open or short in the wire between the condensor fan relay No.2 terminal 5 and the main relay terminal 1 with the injector fuse (15A)

c.

Repair open or short in the wire between the radiator fan relay No.2 terminal 3 and the ECM terminal 19/C230-1.

d.

Replace the fuse if the fuse is broken.

e.

Replace the relay if the relay is defective after checking the continuity between the relay terminal 3 and terminal 5. For more detailed information, Go to "Component Inspection" procedure

f.

Go to step 3

6.

Connect the scan tool to the data link connector(DLC) and trun the ignition switch ON.

7.

Go to the actuation test for driving the condensor fan relay .

8.

Press on the START key

9.

IS THERE THE RADIATOR FAN WITH THE RADIATOR FAN RELAY No.2 ON OPERATED ?

YES

a.

Go to "Verification of Vehicle Repair" procedure

NO

a.

Recheck the fuse and the radiator fan relay

b.

Recheck the wiring harness

c.

Go to step 7

10.

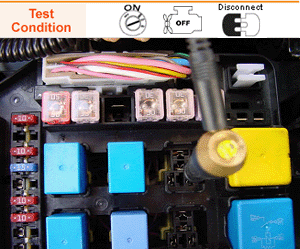

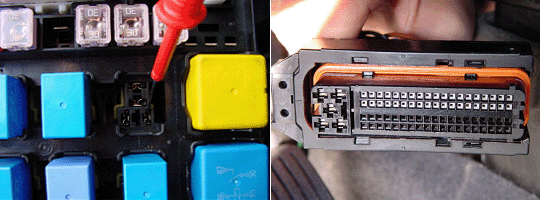

Connect the LED lamp at the radiator fan relay terminal 3 after disconnecting the radator fan realy No.2.

11.

Check the ground condition with the LED lamp when pressing on the START key.

12.

IS THERE LED GREEN LAMP(GROUND) LIGHTED ?

YES

a.

Go to "Verification of Vehicle Repair" procedure

NO

a.

Replace a known - good ECM and recheck. if the LED green lamp is ON, replace the ECM

YES

a.

Go to "Verification of Vehicle Repair" procedure

P1629 : A/C Condensor Fan - Short Circuit
13.

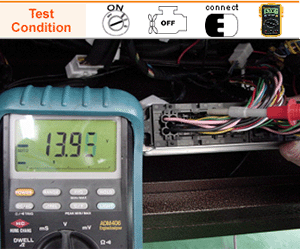

Turn the ignition switch ON, and measure the voltage at the ECM terminal 19/C230-1.

14.

IS THERE A BATTERY VOLTAGE ?

YES

a.

Go to step 3

NO

a.

Repair short in the wire between the radiator fan relay No.2 terminal 1 and the radiator fuse (30A)

b.

Repair short in the wire between the condensor fan relay No.2 terminal 5 and the main relay terminal 1 with the injector fuse (15A)

c.

Repair short in the wire between the radiator fan relay No.2 terminal 3 and the ECM terminal 19/C230-1.

d.

Replace the fuse if the fuse is broken.

e.

Replace the relay if the relay is defective after checking the continuity between the relay terminal 3 and terminal 5. For more detailed information, Go to "Component Inspection" procedure

f.

Go to step 3

15.

Connect the scan tool to the data link connector(DLC) and trun the ignition switch ON.

16.

Go to the actuation test for driving the condensor fan relay .

17.

Press on the START key

18.

IS THERE THE RADIATOR FAN WITH THE RADIATOR FAN RELAY No.2 ON OPERATED ?

YES

a.

Go to "Verification of Vehicle Repair" procedure

NO

a.

Recheck the fuse and the condensor fan relay

b.

Recheck the wiring harness

c.

Go to step 7

19.

Connect the LED lamp at the radiator fan relay terminal 3 after disconnecting the radator fan realy No.2.

20.

Check the ground condition with the LED lamp when pressing on the START key.

21.

IS THERE LED GREEN LAMP(GROUND) LIGHTED ?

YES

a.

Go to "Verification of Vehicle Repair" procedure

NO

a.

Replace a known - good ECM and recheck. if the LED green lamp is ON, replace the ECM.

YES

a.

Go to "Verification of Vehicle Repair" procedure
