4.
IS THERE THE RADIATOR FAN WITH THE RADIATOR FAN RELAY No.2 ON OPERATED ?
YES
a.
Make sure there is no the DTC in the diagnostic trouble codes menu
NO
a.
Recheck the fuse and the condensor fan relay
b.
Recheck the wiring harness
c.
Go to step 5
Connect the scan tool to the data link connector(DLC) and turn the ignition switch ON.

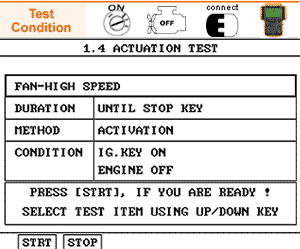

Go to the actuation test for driving the radiator fan relay.
Press on the START key
IS THERE THE RADIATOR FAN WITH THE RADIATOR FAN RELAY No.2 ON OPERATED ?
YES
Make sure there is no the DTC in the diagnostic trouble codes menu
NO
Recheck the fuse and the condensor fan relay
Recheck the wiring harness
Go to step 5
MONITORING FOR PENDING DTC SET ?
YES
Go to the applicable troubleshooting procedure.
NO
System OK
