DTC | P1182 | Fuel Pressure Regulator Short |
P1183 | Fuel Pressure Regulator Open | |
P1184 | Fuel Pressure Regulator Power Stage Error |

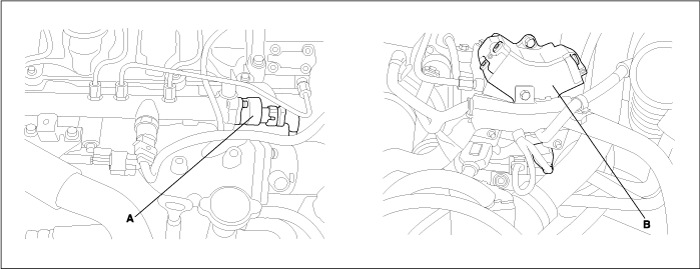

The Fuel Pressure Regulator(A) is used to control the rail pressure by regulating the amount of fuel that is sent to the pumping element of the high-pressure pump(B). The Fuel Pressure Regulator is controlled by an electric current. The ECM determines the value of the current which is influenced by engine speed, flow demand, rail pressure demand, measured rail pressure, etc.
DTC No | Detecting Condition & Limp Home | Suspected area |
P1182 P1183 P1184 | Detecting Condition P1182: Short circuit to power supply line. P1183: Breaking of wire P1184: Power stage error Enable Condition Ignition switch : ON Limp Home Limit of fuel injection(engine power comes to be smaller than normal) | - Fuel Pressure Regulator - Open or short in Fuel Pressure Regulator circuit - ECM |

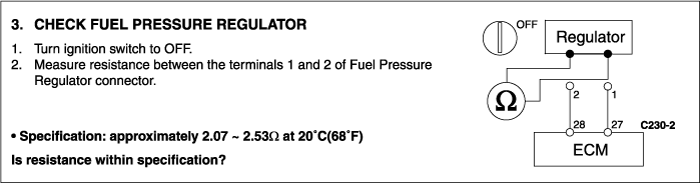

Fuel Pressure Regulator | Normal Parameter (at 20°C( 68°F)) |
Resistance | 2.07 ∼ 2.53Ω |
Proceed with ECM problem procedure. |
