DTC

P0704

Clutch Pedal S/W Malfunction

DESCRIPTION

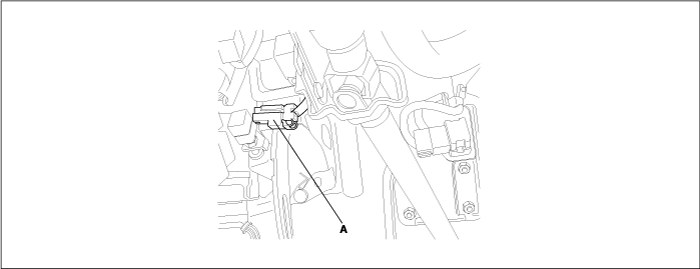

The clutch is located between the engine and the transmission. When the clutch is engaged, the friction disk is clamped tightly between the flywheel and the pressure plate inside clutch cover assembly. And the friction disk turns with the flywheel. When the driver pushes down the clutch pedal, the friction disk moves away from the flywheel by the clutch fork. So, no torque can flow through the clutch and gears can be shifted safely and easily. The ECM senses the state of clutch through clutch switch(A).

DTC DETECTING CONDITION

DTC No

Detecting Condition & Limp Home

Suspected area

P0704

Detecting Condition

Clutch switch is not operated.

- There is no change of the clutch switch signal while vehicle is accelerated to 80 km/h(50mi/h)

Enable Condition

Ignition switch : ON

Limp Home

None

- Open or short in Clutch switch circuit

- Clutch switch

- ECM

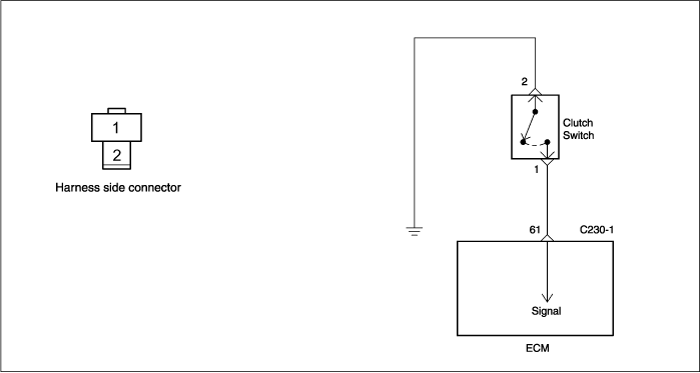

SCHEMATIC DIAGRAM

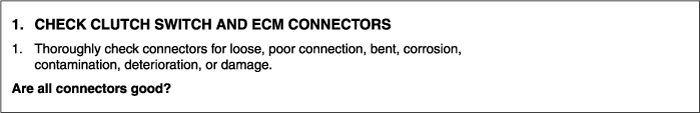

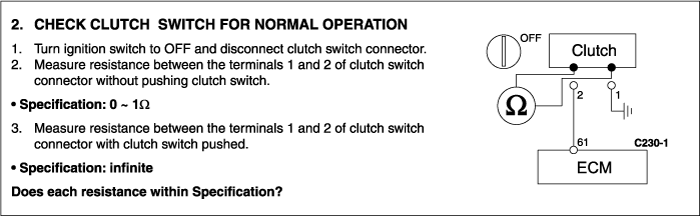

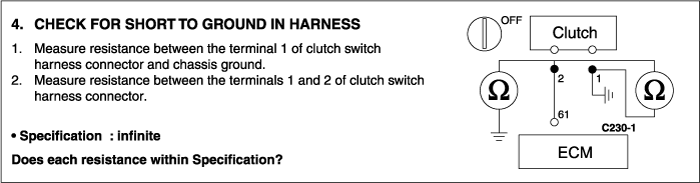

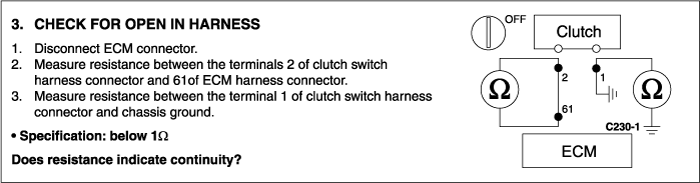

INSPECTION PROCEDURES

Proceed with ECM problem procedure.
