PAD Switch(Passenger airbag deactivation Switch) is the device which prevents Passenger airbag from being deployed when the passenger seat is unoccupied as driver turning OFF PAD Switch. When PAD Switch turned OFF, " PASSENGER SRS OFF" lamp on cluster turns ON.
The above DTC are recorded when the defect of the PAD Switch is detected in PAD Switch circuit.

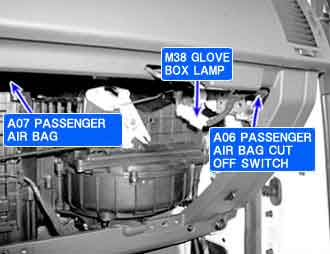

Item | Detecting Condition | Possible Cause |
DTC Strategy | ● Check current | ● Poor connection of connected part. ● Faulty Cut off Switch. ● Faulty SRSCM. |
Enable Conditions | ● Ignition "ON" | |
Threshold Value | ● 5.46mA - 6.68mA | |
Diagnostic Time | Qualification | ● More than 2 sec |
De-Qualification | ● More than 10 sec |
Test Condition | Resistance |
Ignition ON | PAB SW on (PAB enabled): 2.96mA - 5.01mA PAB SW off (PAB disabled): 7.28mA -12.73mA |
