MFI SYSTEM INSPECTION

Engine is hard to start or does not start at all.

Unstable idle.

Poor driveability.

note

●

Before removing or installing any part, read the diagnostic trouble codes and then disconnect the battery negative (-) terminal.

●

Before disconnecting the cable from battery terminal, turn the ignition switch to OFF. Removal or connection of the battery cable during engine operation or while the ignition switch is ON could cause damage to the ECM.

●

The control harnesses between the ECM and heated oxygen sensor are shielded with the shielded ground wires to the body in order to prevent the influence of ignition noises and radio interference. When the shielded wire is faulty, the control harness must be replaced.

●

When checking the generator for the charging state, do not disconnect the battery '+' terminal to prevent the ECM from damage due to the voltage.

●

When charging the battery with the external charger, disconnect the vehicle side battery terminals to prevent damage to the ECM.

MALFUNCTION INDICATOR LAMP (MIL)

●

Catalyst

●

Fuel system

●

Manifold Absolute Pressure (MAP) Sensor

●

Intake Air Temperature Sensor

●

Engine Coolant Temperature Sensor

●

Throttle Position Sensor

●

Upstream Oxygen Sensor

●

Downstream Oxygen Sensor Heater

●

Downstream Oxygen Sensor

●

Upstream Oxygen Sensor Heater

●

Injector

●

Misfire

●

Crankshaft Position Sensor

●

Camshaft Position Sensor

●

Evaporative Emission Control System

●

Vehicle Speed Sensor

●

Idle Control Valve

●

Power Supply

●

ECM

●

MT/AT Encoding

●

Acceleration Sensor

●

MIL-on Request Signal

●

Power Stage

●

Heated oxygen sensor (HO2S)

●

Manifold absolute pressure sensor (MAP sensor)

●

Throttle position sensor (TP Sensor)

●

Engine coolant temperature sensor (ECT Sensor)

●

Idle speed control actuator (ISC Actuator)

●

Injectors

●

ECM

After turning ON the ignition key, ensure that the light illuminates for about 5 seconds and then goes out.

If the light does not illuminate, check for an open circuit in the harness, a blown fuse or a blown bulb.

SELF-DIAGNOSIS

The ECM monitors the input/output signals (some signals at all times and the others under specified conditions). When the ECM detects an irregularity,it records the diagnostic trouble code, and outputs the signal to the Data Link connector. The diagnosis results can be read with the MIL or HI-SCAN.Diagnostic trouble codes (DTC) will remain in the ECM as long as battery power is maintained. The diagnostic trouble codes will, however, be erased when the battery terminal or the engine control module (ECM) connector is disconnected or by HI-CAN.

note

If a sensor connector is disconnected with the ignition switch turned on,the diagnostic trouble code (DTC) is recorded. In this case, disconnect the battery negative terminal (-) for 15 seconds or more, and the diagnosis memory will be erased.

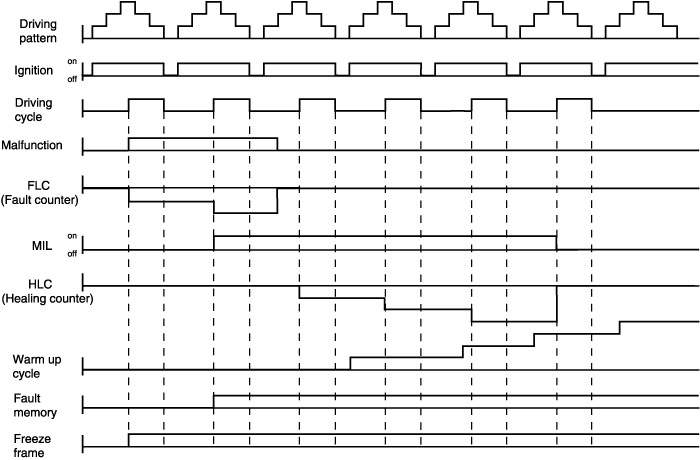

THE RELATION BETWEEN DTC AND DRIVING PATTERN

When the same malfunction is detected and maintained during two sequential driving cycles, the MIL will automatically illuminate.

The MIL will go off automatically if no fault is detected after 3 sequential driving cycles.

A Diagnostic Trouble Code(DTC) is recorded in ECM memory when a malfunction is detected after two sequential driving cycles. The MIL will illuminate when the malfunction is detected on the second driving cycle.

If a misfire is detected, a DTC will be recorded, and the MIL will illuminate, immediately after a fault is first detected.

A diagnostic Trouble Code(DTC) will automatically erase from ECM memory if the same malfunction is not detected for 40 driving cycles.

note

●

A "warm-up cycle" means sufficient vehicle operation such that the coolant temperature has risen by at least 40 degrees Fahrenheit from engine starting and reaches a minimum temperature of 160 degress Fahrenheit.

●

A "driving cycle" consists of engine startup, vehicle operation beyond the beginning of closed loop operation.

DIAGNOSTIC TROUBLE CODES (1.1ℓ, 1.3ℓ, 1.5ℓ, 1.6ℓ EOBD)

DTC NO.	CONTENT	Memory	MIL
P0030	HO2S Heater Current Malfunction (Bank 1, Sensor 1)	O	O
P0031	HO2S Heater Circuit Low (Bank 1, Sensor 1)	O	O
P0032	HO2S Heater Circuit High (Bank 1, Sensor 1)	O	O
P0036	HO2S Heater Circuit Malfunction (Bank 1, Sensor 2)	O	X
P0037	HO2S Heater Circuit Low (Bank 1, Sensor 2)	O	O
P0038	HO2S Heater Circuit High (Bank 1, Sensor 2)	O	O
P0106	MAP Sensor Rationality	O	O
P0107	MAP Sensor Range Check Low	O	O
P0108	MAP Sensor Range Check High	O	O
P0112	Intake Air Temperature Circuit Low Input	O	O
P0113	Intake Air Temperature Circuit High Input	O	O
P0116	Engine Coolant Temperature Sensor Circuit Range/Performance Problem	O	O
P0117	Engine Coolant Temperature Circuit Low Input	O	O
P0118	Engine Coolant Temperature Circuit High Input	O	O
P0121	Throttle Position Sensor Circuit Range/Performance Problem	O	X
P0122	Throttle Position Sensor Circuit Low Input	O	O
P0123	Throttle Position Sensor Circuit High Input	O	O
P0130	O2 Sensor Circuit Malfunction (Bank 1, Sensor 1)	O	O
P0131	HO2S Circuit Low Input (Bank 1, Sensor 1)	O	O
P0132	HO2S Circuit High Input (Bank 1, Sensor 1)	O	O
P0133	HO2S Circuit Slow Responsive (Bank 1, Sensor 1)	O	O
P0134	O2 Sensor Circuit No Activity Detected	O	O
P0136	O2 Sensor Circuit Malfunction (Bank 1, Sensor 2)	O	O
P0137	HO2S Circuit Low Input (Bank 1, Sensor 2)	O	O
P0138	HO2S Circuit High Input (Bank 1, Sensor 2)	O	O
P0140	HO2 Range Check	O	O
P0171	Fuel System Too Lean (Bank 1)	O	O
P0172	Fuel System Too Rich (Bank 1)	O	O
P0230	Fuel Pump Circuit Malfunction	O	X
P0261	Injector Circuit Low Input (Cylinder -1)	O	O
P0264	Injector Circuit Low Input (Cylinder -2)	O	O
P0267	Injector Circuit Low Input (Cylinder -3)	O	O
P0270	Injector Circuit Low Input (Cylinder -4)	O	O
P0262	Injector Circuit High Input (Cylinder -1)	O	O
P0265	Injector Circuit High Input (Cylinder -2)	O	O
P0268	Injector Circuit High Input (Cylinder -3)	O	O
P0271	Injector Circuit High Input (Cylinder -4)	O	O
P0300	Random Misfire Detected	O	O
P0301	Misfire Detected (Cylinder -1)	O	O
P0302	Misfire Detected (Cylinder -2)	O	O
P0303	Misfire Detected (Cylinder -3)	O	O
P0304	Misfire Detected (Cylinder -4)	O	O
P0325	Knock Sensor Circuit Malfunction (Bank 1)	O	X
P0335	Crankshaft Position Sensor Circuit Malfunction	O	O
P0336	Crankshaft Position Sensor Circuit Out Of Range	O	O
P0340	Camshaft Position Sensor Circuit Malfunction	O	O
P0420	Main catalyst efficiency deterioration (Bank 1)	O	O
P0444	EVAP Emission Control System Purge Control Valve Circuit Open	O	O
P0445	EVAP Emission Control System Purge Control Valve Circuit Shorted	O	O
P0501	Vehicle Speed Sensor Range/Performance	O	O
P0506	Idle RPM Lower than Expected	O	O
P0507	Idle RPM Higher than Expected	O	O
P0562	System Voltage Low	O	O
P0563	System Voltage High	O	O
P0605	Internal CONTROL module ROM error	O	X
P1307	Acceleration Sensor Malfunction	O	O
P1308	Acceleration Sensor Signal Check Low	O	O
P1309	Acceleration Sensor Signal Check High	O	O
P1505	Idle Charge Actuator Signal Low of Coil #1	O	O
P1506	Idle Charge Actuator Signal High of Coil #1	O	O
P1507	Idle Charge Actuator Signal Low of Coil #2	O	O
P1508	Idle Charge Actuator Signal High of Coil #2	O	O
P1586	Encoding Signal Circuit Not Rational	O	O
P1690	Immobilizer SMATRA Error	O	X
P1691	Immobilizer Antena Error	O	X
P1693	Immobilizer Transponder Error	O	X
P1694	Engine ECM Signal Error	O	X
P1695	EEPROM Error	O	X

DIAGNOSTIC TROUBLE CODES (1.1ℓ, 1.3ℓ, 1.5ℓ, 1.6ℓ NON-EOBD)

DTC NO.	CONTENT	Memory	MIL
P0031	HO2S Heater Circuit Low (Bank 1, Sensor 1)	O	X
P0032	HO2S Heater Circuit High (Bank 1, Sensor 1)	O	X
P0107	MAP Sensor Range Check Low	O	O
P0108	MAP Sensor Range Check High	O	O
P0112	Intake Air Temperature Circuit Low Input	O	X
P0113	Intake Air Temperature Circuit High Input	O	X
P0116	Engine Coolant Temperature Sensor Circuit Range/Performance Problem	O	X
P0117	Engine Coolant Temperature Circuit Low Input	O	O
P0118	Engine Coolant Temperature Circuit High Input	O	O
P0121	Throttle Position Sensor Circuit Range/Performance Problem	O	X
P0122	Throttle Position Sensor Circuit Low Input	O	O
P0123	Throttle Position Sensor Circuit High Input	O	O
P0130	O2 Sensor Circuit Malfunction (Bank 1, Sensor 1)	O	X
P0131	HO2S Circuit Low Input (Bank 1, Sensor 1)	O	X
P0132	HO2S Circuit High Input (Bank 1, Sensor 1)	O	X
P0133	HO2S Circuit Slow Responsive (Bank 1, Sensor 1)	O	X
P0134	O2 Sensor Circuit No Activity Detected	O	X
P0171	Fuel System Too Lean (Bank 1)	O	X
P0172	Fuel System Too Rich (Bank 1)	O	X
P0230	Fuel Pump Circuit Malfunction	O	X
P0261	Injector Circuit Low Input (Cylinder -1)	O	O
P0264	Injector Circuit Low Input (Cylinder -2)	O	O
P0267	Injector Circuit Low Input (Cylinder -3)	O	O
P0270	Injector Circuit Low Input (Cylinder -4)	O	O
P0262	Injector Circuit High Input (Cylinder -1)	O	O
P0265	Injector Circuit High Input (Cylinder -2)	O	O
P0268	Injector Circuit High Input (Cylinder -3)	O	O
P0271	Injector Circuit High Input (Cylinder -4)	O	O
P0325	Knock Sensor Circuit Malfunction (Bank 1)	O	X
P0335	Crankshaft Position Sensor Circuit Malfunction	O	X
P0336	Crankshaft Position Sensor Circuit Out Of Range	O	X
P0340	Camshaft Position Sensor Circuit Malfunction	O	X
P0501	Vehicle Speed Sensor Range/Performance	O	X
P0506	Idle RPM Lower than Expected	O	X
P0507	Idle RPM Higher than Expected	O	X
P0562	System Voltage Low	O	X
P0563	System Voltage High	O	X
P0605	Internal CONTROL module ROM error	O	X
P1505	Idle Charge Actuator Signal Low of Coil #1	O	O
P1506	Idle Charge Actuator Signal High of Coil #1	O	O
P1507	Idle Charge Actuator Signal Low of Coil #2	O	O
P1508	Idle Charge Actuator Signal High of Coil #2	O	O
P1586	Encoding Signal Circuit Not Rational	O	X
P1690	Immobilizer SMATRA Error	O	X
P1691	Immobilizer Antena Error	O	X
P1693	Immobilizer Transponder Error	O	X
P1694	Engine ECM Signal Error	O	X
P1695	EEPROM Error	O	X
