DIAGNOSTIC ITEM
P0732

DTC NO

DIAGNOSTIC ITEM

P0732

SECOND GEAR SYSTEM

- MALFUNCTION -

DESCRIPTION
●

If the value resulting from driving the PG-A output (input shaft rotation speed) by the 2nd gear ratio does not match the PG-B output (output shaft rotation speed) after 2nd gear is engaged, DTC P0732 is output.

TROUBLESHOOTING GUIDE

Detection condition

Possible cause

Check item

●

If the value resulting from driving the PG-A output (input shaft rotation speed) by the 2nd gear ratio does not match the PG-B output (output shaft rotation speed) after 2nd gear is engaged, DTC P0732 is output

Malfunction

●

PG-A or PG-B

●

Transfer driven gear

●

Rear clutch

●

Kickdown brake

●

Malfunction of pulse generator circuit

●

Rear clutch slippage

●

Kickdown brake slippage

SYMPTOM

●

Automatic transaxle will hold in 3rd gear (D) or 2nd gear (2,L)

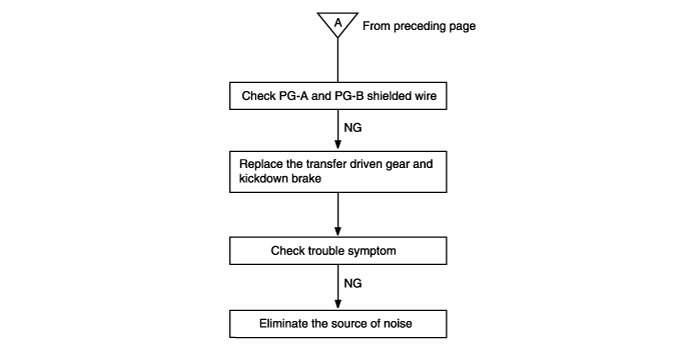

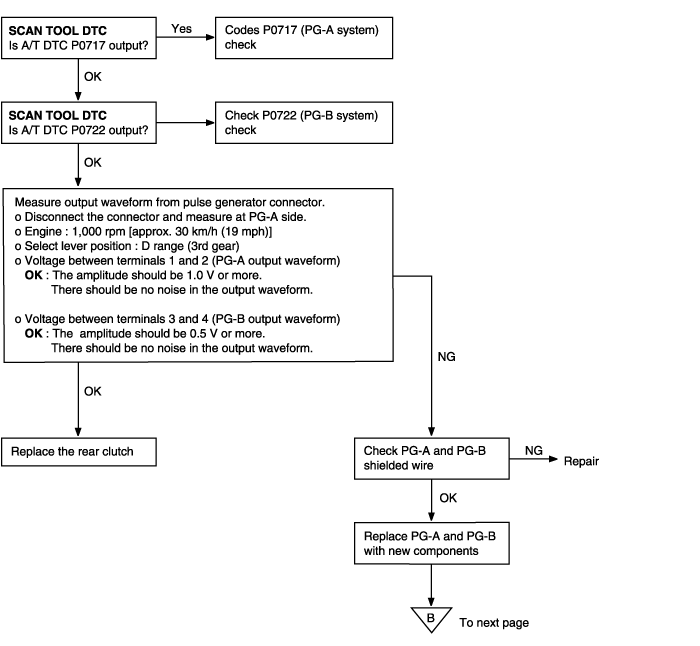

TROUBLESHOOTING FLOW
