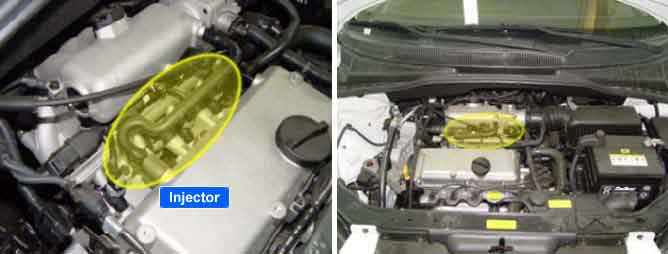

Electronically controlled fuel injector is a solenoid valve which supplies exactly calculated amount of fuel to engine for optimum conbustion under various engine load and speed. To meet air-fuel ratio required in system, ECM regulates fuel injection quantity as controlling injector solenoid operating duration referring air flow to cylinders and output signals from HO2S. For this precise control, quick response of solenoid is required and for perfect combustion, injection characteristic is important.
If there is Short to ground in injector #2 circuit, PCM sets DTC P0264.
Item | Detecting Condition | Possible Cause |
DTC Strategy | ● Circuit continuity check, low | ● Poor connection ● Short to ground in control circuit ●Open in power circuit ● Injector ● ECM |
Enable Conditions | ||
Threshold Value | ||
Diagnostic Time | ● Continuous | |
MIL ON Condition | ● 5 sec |
ITEM | Specification |
Coil Resistance | 13.8 ~ 15.2 Ωat 20 ℃ (68℉) |
