4.
Inspect opearating status of ESP(HSV) valve #1 with Actuation Test.
a.
Specification : It’s normal if operating sound is heard.
Connect scantool to Data Link Connector(DLC)
Ignition "ON" & Engine "OFF".

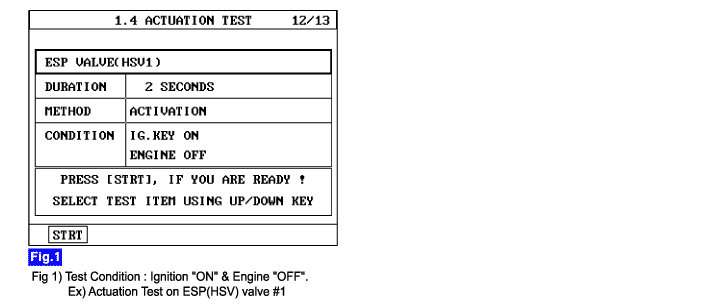

Select the "Actuation Test" mode on the scantool.
Inspect opearating status of ESP(HSV) valve #1 with Actuation Test.
Specification : It’s normal if operating sound is heard.
Does a ESP(HSV) valve #1 operate normally?
YES
Fault is intermittent caused by faulty valve or was repaired and HECU memory was not cleared. Go to "Verification of Vehicle Repair" procedure.
NO
Go to "Component Inspection" procedure.
