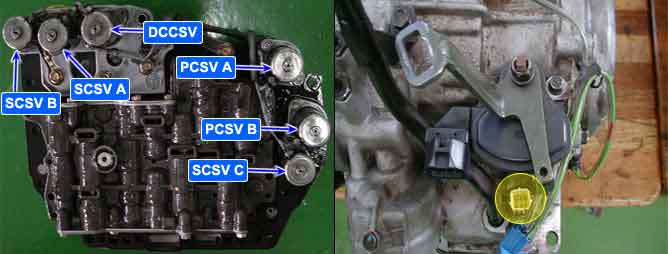

Component Location
General Description

The Pressure Control Solenoid Valve A ( PCSV A ) converts the electric signals, which are controlled by the TCM, into hyraulic pressure.

The PCSV A controls the hydraulic pressure, which is applied to the Clutches and Brakes, to reduce the shift shock during shifting.

DTC Description

The PCM/TCM checks the Pressure Control Solenoid Valve signals by monitoring the feedback signals from the solenoid valve drive circuit. If an unexpected signal is monitored, ( For example, high voltage is detected when low voltage is expected, or low voltage is detected when high voltage is expected) the TCM judges that the PCSV A drive circuit is malfunctioning and sets this code.

DTC Detecting Condition

Item

Detecting Condition

Possible Cause

DTC Strategy

● Check voltage range

● Open or short in circuit

● Faulty PCSV-A

● Faulty PCM/TCM

Enable Conditions

● 25% < Solenoid duty < 100%

● Timer of PWM monitoring > 0.5sec

● 8V < Voltage of Battery <16V

Threshold Value

Diagnostic Time

● More than 300 ms

Fail Safe

● Locked in 3 rd gear.

Schematic Diagram
note
To view Flash content, you need to install the appropriate browser extension

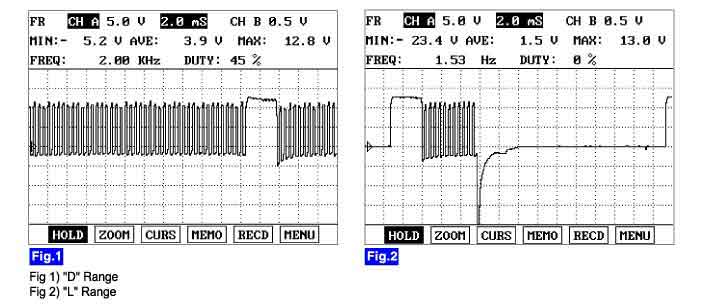

Signal Waveform
