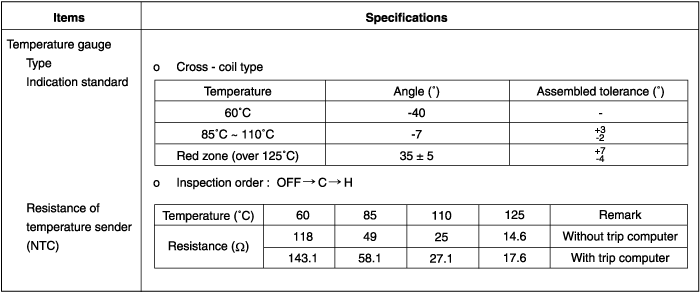

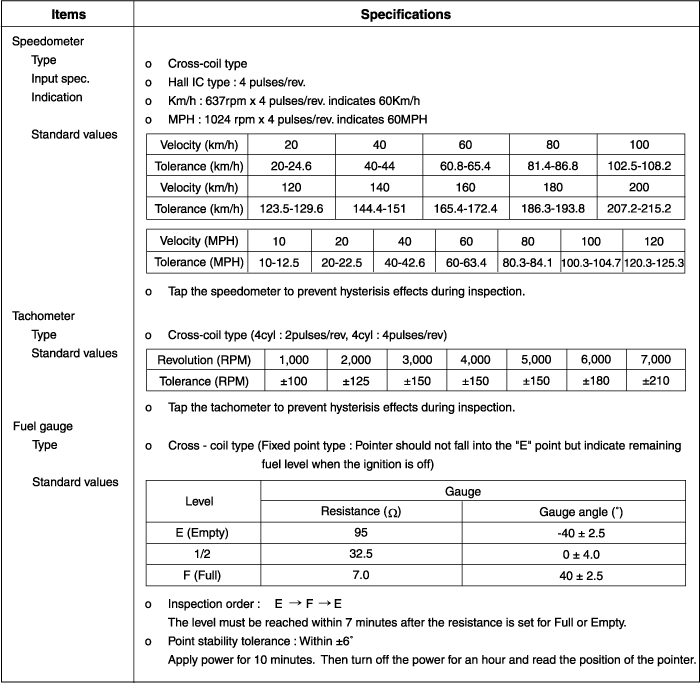

Items | Specifications |
Rated voltage | DC 12 V |
Operating temperature range | -30°C ~ +80°C (-22 ~ +176°F) |
Rated load Dimmer & passing switch Lighting switch Turn signal & lane change switch Wiper switch Washer switch Rear wiper & washer switch | High : 230W (Lamp load) Low : 110W (Lamp load) Tail : 66W (Lamp load) Lighting : 21W (Lamp load) 69W (Lamp load) Low, High : 5A (Motor load) Intermittent : 7mA (Relay load) Lock : Max. 25A (Motor load) 5A (Motor load) Rear wiper : 3.5A (Motor load) Rear washer : 5A (Motor load) |
Warning lamps | Bulb wattage (W) | Color |
Illumination | GLS-L : 3.4W (4EA), 1.4W (1EA) GL : 3.4W (3EA), 1.4W (1EA) GLS-H : 3.4W (4EA), LED (3EA) | Green |
High beam | 1.4 | Blue |
Low fuel | 1.4 | Amber |
Turn signal (LH, RH) | 1.4 | Green |
Battery (charge) | 1.4 | Red |
Oil pressure | 1.4 | Red |
Air bag | 1.4 | Red |
Parking brake | 1.4 | Red |
Seat belt | 1.4 | Red |
Check engine | 1.4 | Amber |
ABS | 1.4 | Amber |
Door ajar | 1.4 | Red |
Tailgate open | 1.4 | Amber |
Immobilizer | 1.4 | Amber |
EPS | 1.4 | Red |
OD OFF | 1.4 | Amber |
Items | Bulb wattage (W) |
Head lamp | 60W /55W (High / Low beam) |
Front turn signal lamp | 21W |
Front position lamp | 5W |
Front fog lamp | 27W |
Rear combination lamps Tail/stop lamp Back up lamp Turn signal lamp | 5W / 21W 21W 21W |
Luggage lamp | 5W |
Room lamp | 10W |
Center high mounted stop lamp | 16W |
Overhead console lamp | 10W x 2 |
License plate lamp | 5W x 2 |
Items | K210, K220 | K240, H280 |
Rated output | Max. 20W x 2 | Max. 20W x 4 |
Load impedance | 4Ω x 4 | 4Ω x 4 |
Band | AM/FM, LW/MW/FM | AM/FM, LW/MW/FM |
Tuning type | PLL Synthesized type | PLL Synthesized type |
Dark current | Max. 2mA | Max. 2mA |
Frequency range / Channel | AM : 531 ~ 1602KHZ/9 KHZ | AM : 531 ~ 1602KHZ/9 KHZ |
FM : 87.5 ~ 108MHZ/100 KHZ | FM : 87.5 ~ 108 MHZ/100KHZ | |
LW : 153 ~ 279KHZ/1 KHZ | LW : 153 ~ 279 KHZ/1KHZ | |
MW : 522 ~ 1620KHZ/9KHZ | MW : 522 ~ 1620KHZ/9KHZ | |
FM : 87.5~108 MHZ/50KHZ | FM : 87.5~108 MHZ/50KHZ |
Items | Specifications |
Windshield wiper motor Rated voltage Operating voltage range Insulation resistance Speed/current at 1Nm load test Speed/current at 4Nm load test Torque/current when parking | DC 12V DC 10~15V Min. 1MΩ Low : 44~52 rpm/3.5A or less High : 64~78 rpm/4.5A or less Low : 39~47 rpm/5.5A or less High : 56~68 rpm/7.0A or less Low : 28Nm/24A or less High : 23Nm/28A or less |
Windshield & rear washer Motor type Pump type Rated voltage Discharge pressure Flow rate Current Overload capacity (Continuous operation) With water Without water (Racing) | DC ferrite magnet Centrifugal 12V 1.8kg/cm² or more 1,500cc/min. or more 5.0A or less 60 sec. or less 20 sec. or less |
Rear wiper motor Speed/current at no load test Speed/current at 1Nm load test Torque/current when parking Wiping angle at no load | 38~50 rpm/2.0A or less 35~45 rpm/3.5A or less 8Nm/14A or less 173° ± 3° |
