REMOVAL AND INSTALLATION

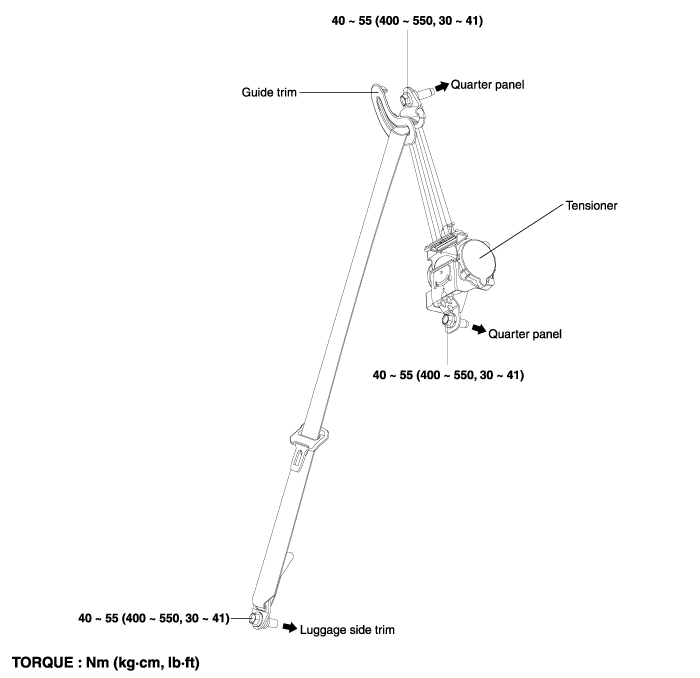

REAR SEAT BELT

note

When using a screwdriver or a trim remover, wrap it with protective tape to prevent damage.

1.

First, remove the following items.

A.

Transverse trim

B.

Luggage side trim

C.

Rear pillar trim

2.

Remove the rear seat belt.

3.

Installation is the reverse of removal.

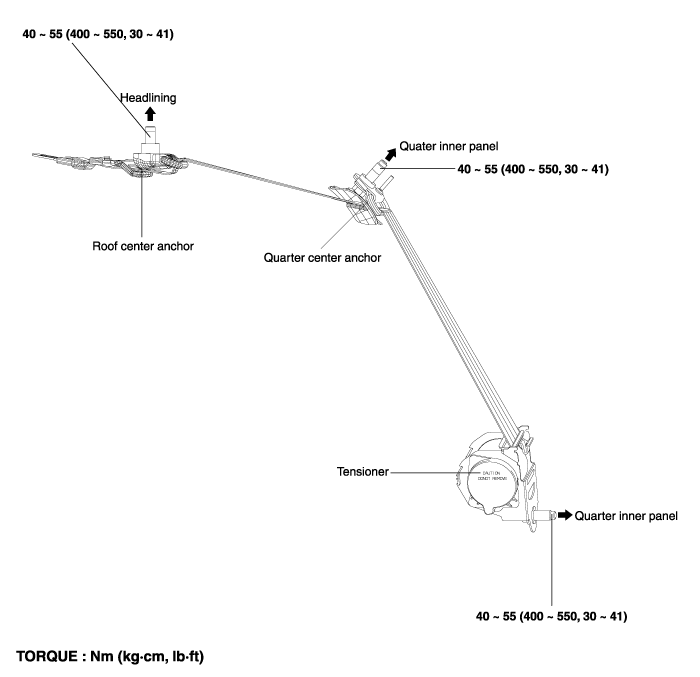

REAR CENTER SEAT BELT

note

When using a screwdriver or a trim remover, wrap it with protective tape to prevent damage.

1.

First, remove the following items.

A.

Transverse trim

B.

Luggage side trim

C.

Rear pillar trim

2.

Remove the rear center seat belt.

3.

Installation is the reverse of removal.
